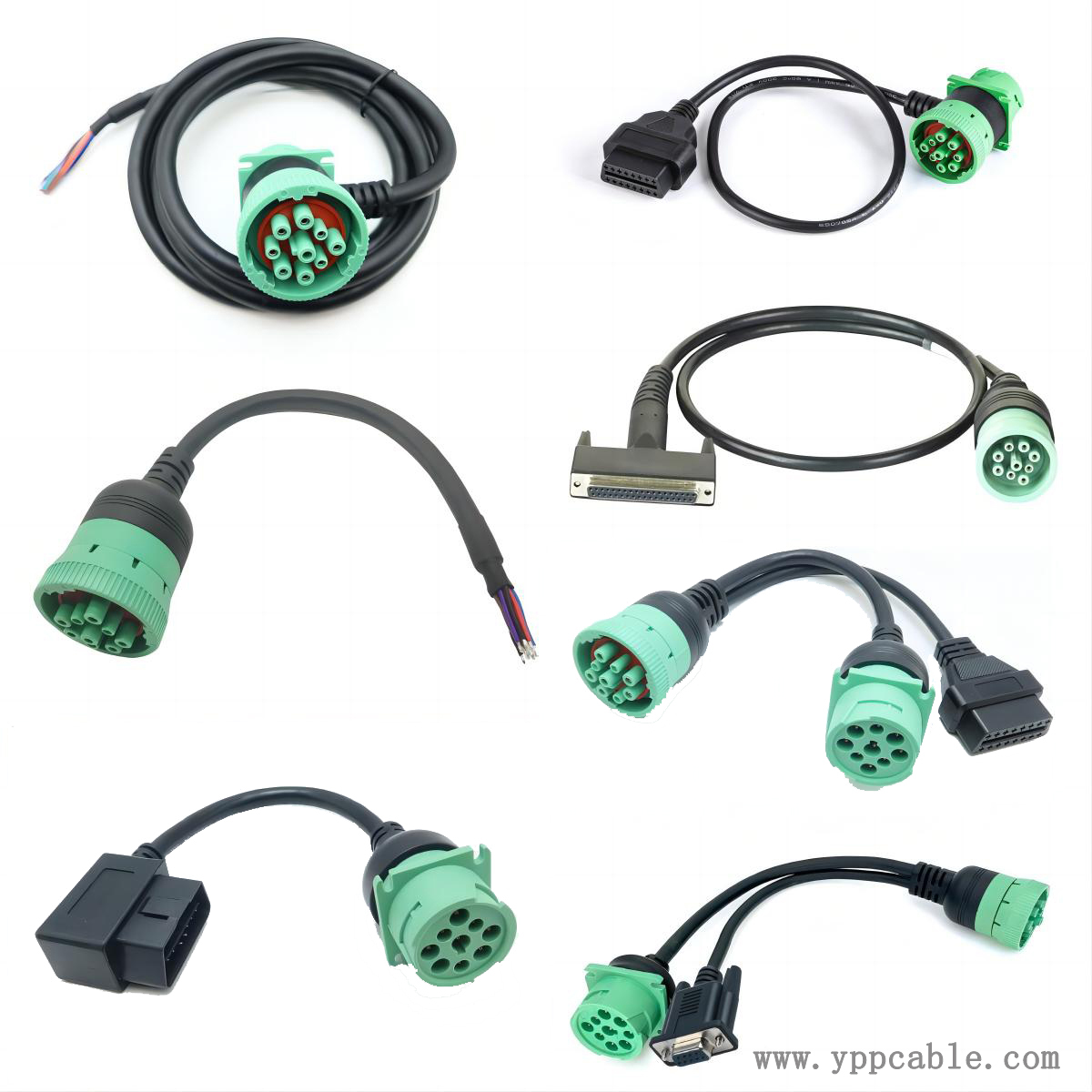

Common troubleshooting and solutions for J1939 male to J1939 female and OBD2 splitter Y cables

Common troubleshooting and solutions for J1939 male to J1939 female and OBD2 splitter Y cables

During the use of J1939 male to female cable and OBD2 splitter Y cable, communication interruption, signal interference and other faults are prone to occur due to environmental factors, improper installation or equipment aging. It is necessary to troubleshoot and solve the problem through the system.

Communication interruption is the most common fault, which needs to be investigated from three aspects: interface, cable, and splitter. If there is no data transmission after connecting the J1939 male to female cable, first check if the interface pins are bent or oxidized. Use a multimeter to measure the pin continuity. If the pins are damaged, replace the cable; Next, check whether the internal wires of the cable are broken. The stability of the connection can be tested by pulling the cable. If it is broken, a new cable needs to be replaced. When there is a communication interruption in the Y cable of the OBD2 splitter, first test the connection between the main port and a single output port. If communication is restored, it is a fault in the internal signal distribution circuit of the splitter and the splitter needs to be replaced; If there is still no data connected to the main port, it is necessary to check whether the power supply of the vehicle OBD2 interface is normal. If the power supply is abnormal, the vehicle circuit needs to be repaired.

Signal interference faults manifest as unstable data transmission and the appearance of error codes. When the J1939 cable is interfered with, it is necessary to check whether the cable shielding layer is well grounded. If it is not grounded, the ground wire needs to be reconnected; If the cable is close to the high-voltage conductor, the wiring position needs to be adjusted to increase the shielding distance. When interference occurs in the OBD2 splitter, it is necessary to confirm whether the splitter has signal isolation function. If there is no isolation function, the splitter with isolation should be replaced; At the same time, check whether each output port device is compatible. If a device consumes too much power, it needs to be powered separately to avoid affecting the splitter signal.

In addition, special fault scenarios should also be noted. For example, if the cable becomes hard in a low-temperature environment and causes poor interface contact, the low-temperature resistant cable needs to be replaced; After long-term use, poor heat dissipation of the splitter may cause it to crash. It is necessary to clean the heat dissipation holes of the splitter to avoid obstruction. When troubleshooting, it is necessary to follow the principles of "hardware first, software second" and "simple first, complex second", and quickly locate the problem through replacement methods (replacing normal cables or splitters for testing) to ensure efficient resolution of the fault and restore normal operation of the vehicle's electronic system.
