Application of OBD2 16 pin to open end cable in automotive maintenance

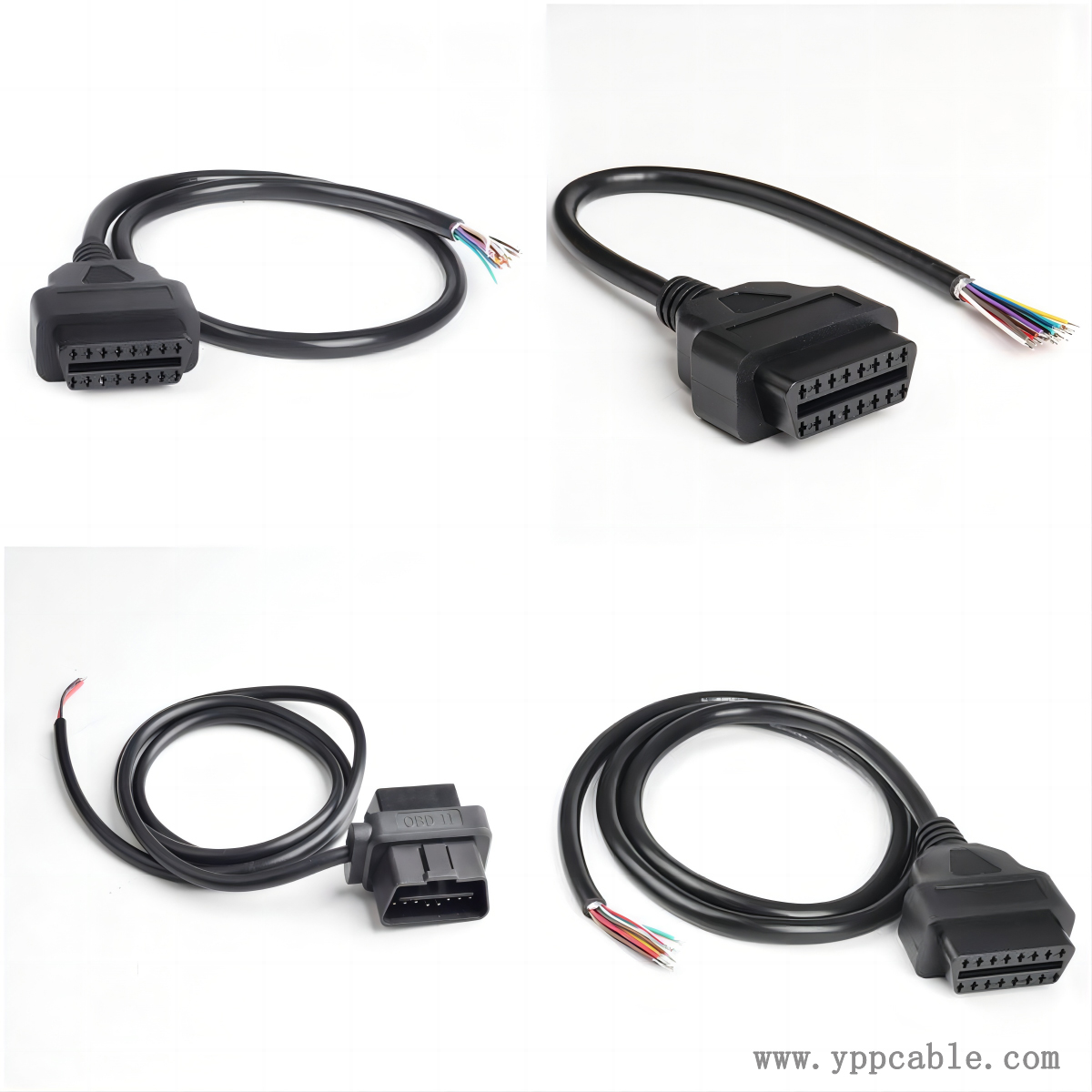

In the automotive maintenance scenario, the OBD2 16 pin to open end cable , with its advantages of flexible adaptation and stable transmission, has become a "key assistant" for engine fault diagnosis, chassis system debugging, electronic device programming, and other work. Its practical application scenarios cover the entire maintenance process.

In engine fault diagnosis, maintenance personnel can connect one end of the cable to the vehicle OBD2 interface and the other end to the oscilloscope. By flexibly adapting the probe interface of different types of oscilloscopes through the open end, real-time data such as fuel injector voltage waveform and ignition coil current changes can be collected to directly determine whether the engine has problems such as insufficient fuel supply and abnormal ignition. Compared with ordinary diagnostic lines, its high shielding can avoid engine electromagnetic interference, make waveform data more accurate, and help quickly locate the fault point.

In chassis system debugging, this cable can connect a dedicated diagnostic instrument to the ABS (Anti lock Braking System) control unit. Through an open end custom data transmission protocol, real-time signals from wheel speed sensors, changes in brake pressure, and other parameters can be read to assist maintenance personnel in calibrating the ABS system threshold, solving problems such as brake softness and anti lock braking function failure, and improving debugging efficiency.

In electronic device programming, for the ECU upgrade needs of modified or old vehicle models, maintenance personnel can use the open end of the cable to connect the programming device with the vehicle OBD2 interface, customize the data transmission rate and communication protocol, and achieve ECU program refresh, anti-theft system matching and other operations. For example, in the power upgrade of diesel vehicles, stable transmission of new fuel injection control programs through this cable can effectively improve engine power performance and avoid programming failures caused by protocol incompatibility.
