OBD2 16 pin to open end cable: an important tool for automotive diagnosis

OBD2 16 pin to open end cable: an important tool for automotive diagnosis

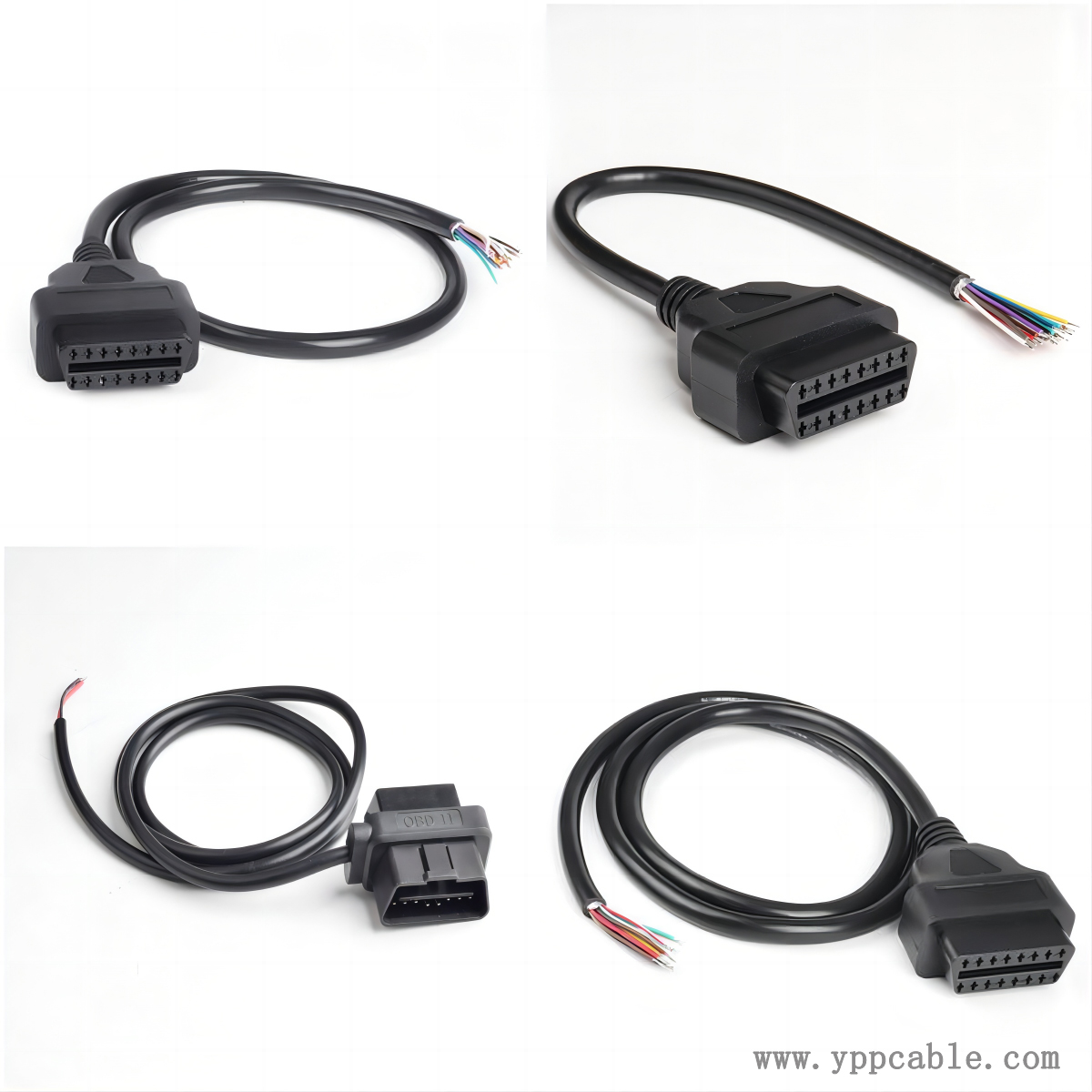

In the field of automotive electronic diagnosis, the OBD2 16 pin to open end cable is the core component that connects diagnostic equipment and vehicle ECU (electronic control unit). Its "open end" design combined with the 16 pin standard interface makes it a flexible and efficient diagnostic tool in maintenance scenarios.

From a structural perspective, the 16 pin interface of the cable strictly follows the OBD2 international standard, with each pin corresponding to specific functions such as power supply, CAN bus communication, K-line diagnosis, etc., ensuring compatibility with mainstream car models worldwide. The "open end" design breaks the limitations of traditional fixed joints, and maintenance personnel can flexibly weld or connect different joints according to the interface type of diagnostic equipment, adapting to various devices such as oscilloscopes, multimeters, and specialized diagnostic instruments, especially in customized diagnostic scenarios, with significant advantages.

In terms of data transmission performance, the high-quality OBD2 16 pin open-ended tail fiber cable adopts high-purity copper core and shielding layer design, which can effectively reduce electromagnetic interference and ensure the stability and accuracy of diagnostic data. Whether it is reading fault codes, real-time monitoring of engine parameters, or ECU programming, it can achieve millisecond level data response, providing reliable technical support for automotive maintenance, and can be called the "data bridge" in the modern automotive diagnostic system.
