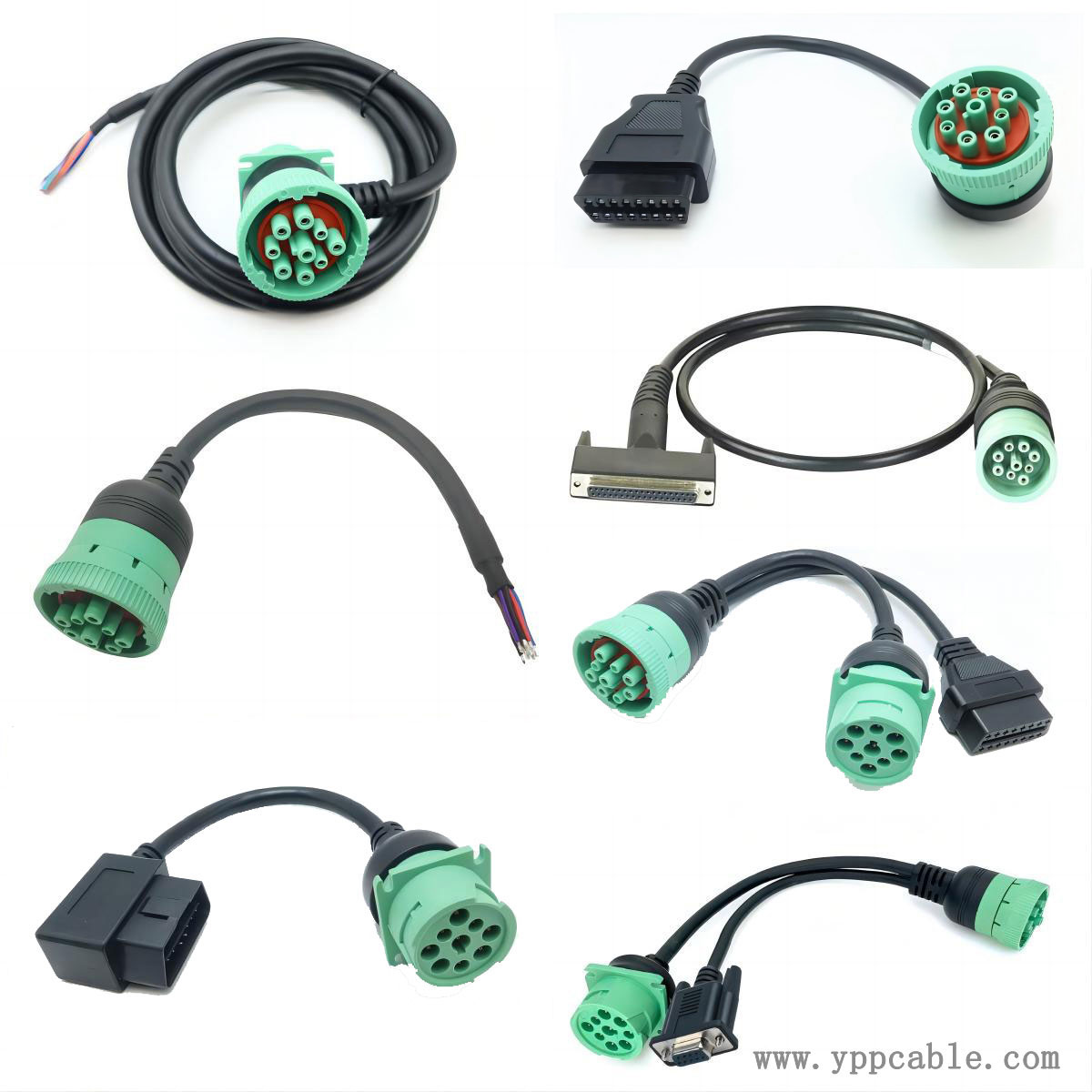

Right angle J1939 to OBD2 cable: a powerful tool for solving diagnostic problems in commercial vehicles

Right angle J1939 to OBD2 cable: a powerful tool for solving diagnostic problems in commercial vehicles

In the field of commercial vehicle electronic diagnosis, the right angle J1939 to OBD2 cable, with its unique design and professional performance, has become the core link connecting heavy vehicles and general diagnostic equipment. This cable is designed specifically to address the complex electrical architecture of commercial vehicles. Its 90 degree right angle connector design cleverly solves the installation problem of the J1939 standard 9-pin interface in narrow spaces, avoiding the problems of loose connections or signal interference caused by space limitations in traditional direct insertion cables.

On a technical level, the cable strictly follows the SAE J1939 protocol specification, uses 250Kbps high-speed CAN bus communication, effectively suppresses electromagnetic interference through shielded twisted pair structure, and ensures the stability and accuracy of data transmission. Its core function lies in protocol conversion and adaptation: the built-in intelligent chip can automatically identify PGN (parameter group number) and SPN (suspicious parameter number) in the J1939 network, and convert key parameters such as engine status and emission data into OBD2 standard format output, achieving seamless compatibility with mainstream diagnostic instruments on the market.

From the perspective of structural design, the cable adopts a high-strength nylon shell and pure copper tin plated terminals. Some cables have IP67 dust and waterproof performance, which can adapt to extreme working environments. Whether it's trucks, buses, or construction machinery, this right angle J1939 to OBD2 cable can provide accurate data support for maintenance personnel with professional and reliable performance, becoming an indispensable diagnostic tool in the commercial vehicle aftermarket.
