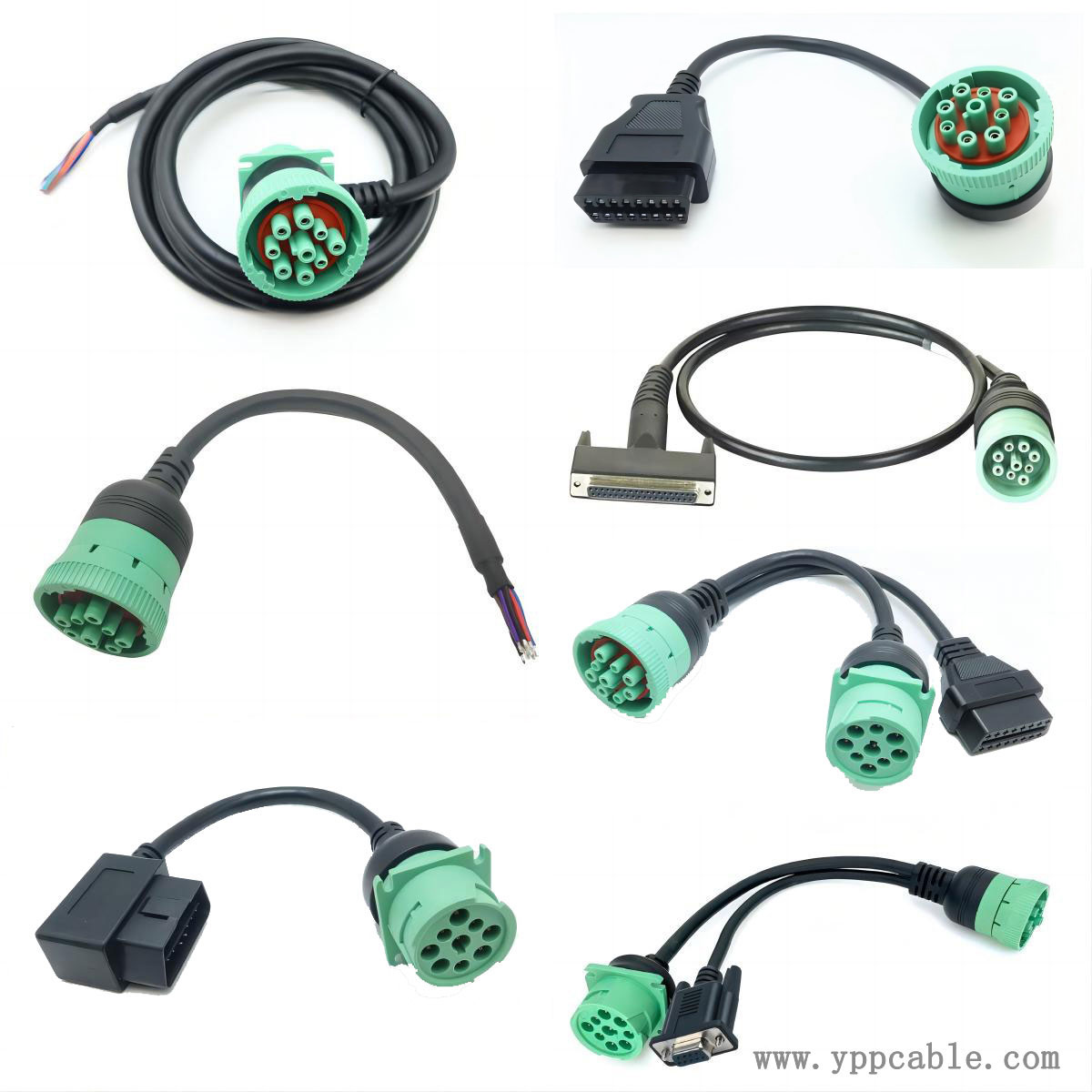

In the complex communication network of commercial vehicle electronic control units (ECUs), J1939 to open end cables, as a key component connecting standardized J1939 protocol devices and open interface systems, are becoming an important tool for improving device compatibility and maintenance efficiency. Its core value lies in the flexible adaptation of physical interfaces, breaking the limitations of traditional closed communication architectures and providing efficient solutions for device debugging, data collection, and system upgrades.

Technical Architecture: Integration of Standardization and Openness

The J1939 to open end cable is designed based on the SAE J1939 protocol and uses CAN 2.0B high-speed bus (250Kbps) as the physical layer. Its open end design breaks through the limitations of traditional closed connectors and can flexibly adapt to diagnostic tools, data loggers, or custom development boards from different manufacturers.

Application scenario: Full chain coverage from diagnosis to development

In the heavy-duty truck maintenance workshop, technicians can directly connect the diagnostic instrument to the vehicle OBD interface through an open end cable, and quickly read the fault code (SPN) in the J1939 message.

Advantage Analysis: Dual Optimization of Efficiency and Cost

Compared to traditional enclosed diagnostic cables, J1939 to open end cables reduce equipment adaptation costs through standardized interfaces.

From truck repair workshops to intelligent agricultural machinery laboratories, J1939 open end cables are redefining the connection method of commercial vehicle communication equipment in a "standardized interface+open ecosystem" mode, providing basic support for the industry's intelligent transformation.
