J1939 cable: the cornerstone of heavy-duty vehicle communication

J1939 cable: the cornerstone of heavy-duty vehicle communication

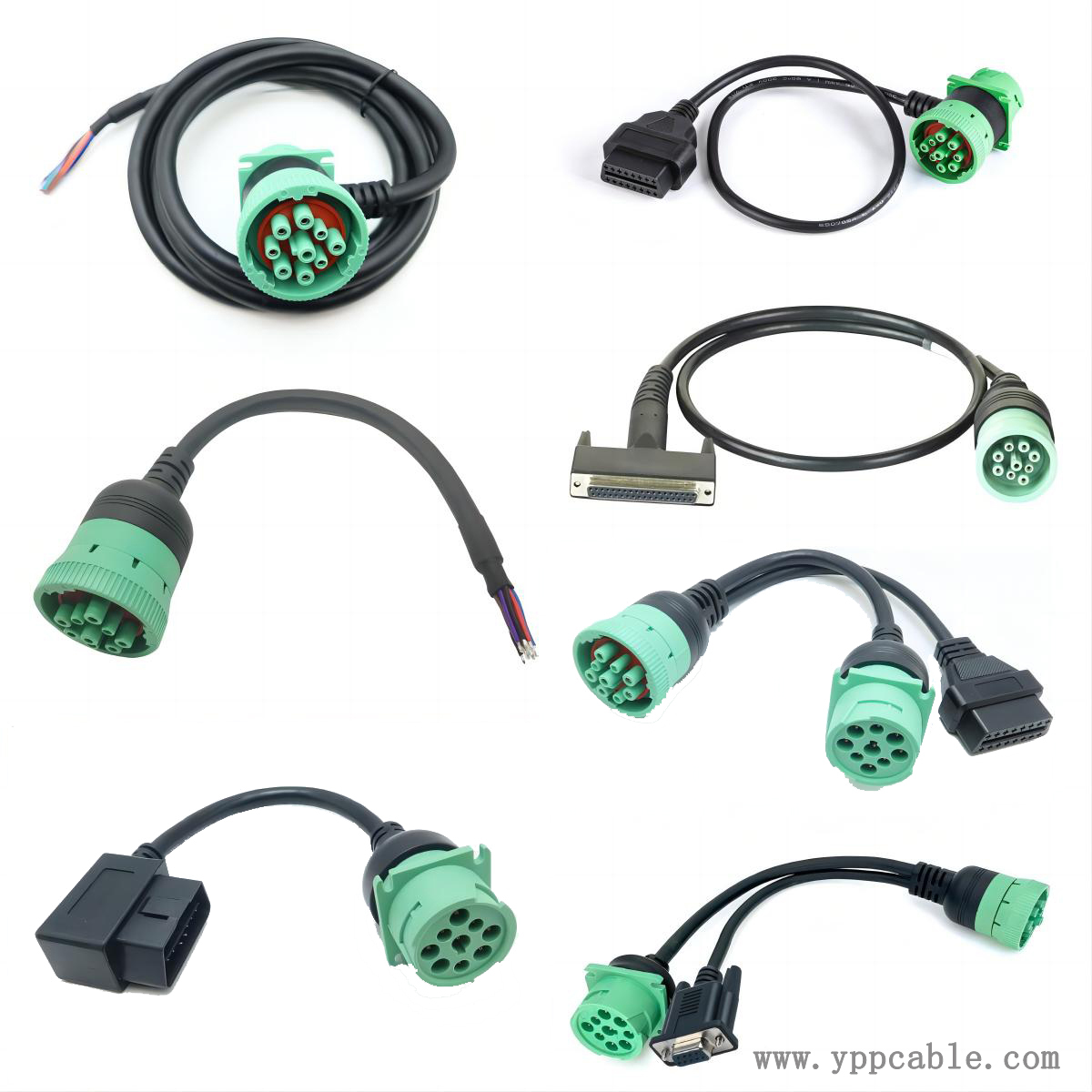

J1939 cable, as a key component in heavy-duty vehicle electronic systems, is designed based on the SAE J1939 protocol standard and is specifically designed for the communication needs of complex equipment such as trucks, buses, engineering machinery, and ships. Its core function is to achieve efficient data transmission between multiple nodes through standardized physical layers, ensuring the collaborative work of various electronic control units (ECUs) in the vehicle.

Physical characteristics and standard specifications

J1939 cables strictly follow the SAE J1939-11 standard. The twisted pair design suppresses external interference through the principle of electromagnetic field cancellation, and the outer metal shielding layer further blocks high-frequency noise, ensuring the stability of data transmission in strong electromagnetic environments such as engine compartments and hydraulic systems.

Application scenarios and ecological adaptation

This cable is widely used in the power system control, fault diagnosis, and network management of heavy vehicles.

Technological Evolution and Industry Impact

With the increasing level of vehicle electronicization, J1939 cables continue to iterate to meet higher bandwidth requirements. As the core infrastructure in the field of heavy-duty vehicle communication, the standardized design of J1939 cables not only simplifies the system integration process, but also provides solid guarantees for the safe operation of vehicles through high reliability characteristics.
