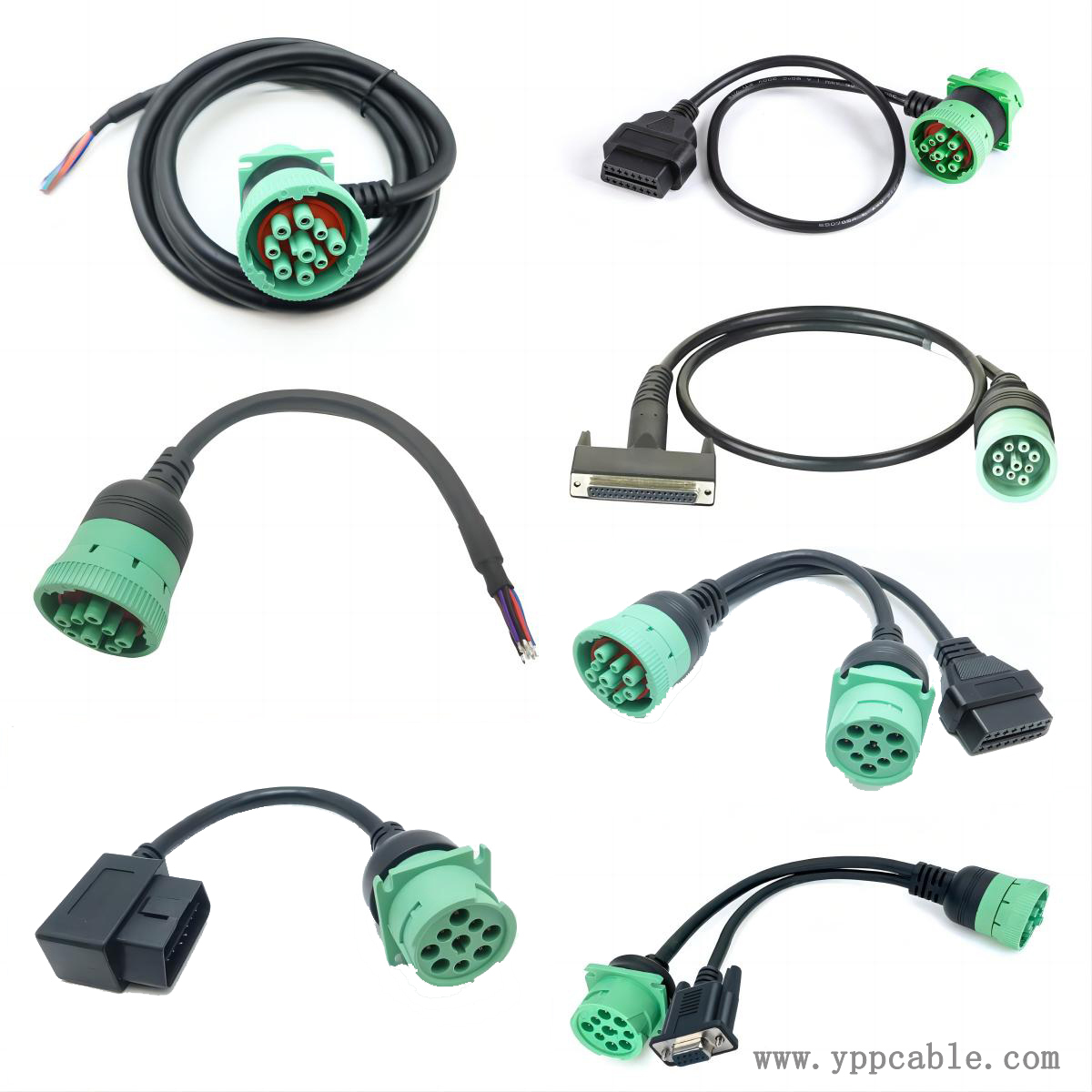

What are the advantages of J1939 9Pin Pass Through Male/Female to OBD2 cable

What are the advantages of J1939 9Pin Pass Through Male/Female to OBD2 cable

The advantages of J1939 9Pin Pass Through Male/Female to OBD2 cable are mainly reflected in compatibility, functional expansion, installation convenience, durability and reliability, and cost-effectiveness. The following is a specific analysis:

1. Compatibility and universality

Cross protocol adaptation: J1939 protocol is mainly used for heavy-duty commercial vehicles (such as trucks, buses, and construction machinery), while OBD2 protocol is a universal diagnostic interface standard for passenger cars. This adapter cable enables direct connection between J1939 equipment and OBD2 interface without the need for additional hardware or protocol converters, making it suitable for scenarios that require diagnosis of both commercial and passenger vehicles (such as repair shops and fleet management).

Equipment reuse: Allow the use of diagnostic tools that support J1939 (such as professional level scanners) to read OBD2 vehicle data, or vice versa, to improve equipment utilization.

2. Functional Scalability

Parameter coverage: J1939 supports richer parameter group numbers (PGN) and suspicious parameter numbers (SPN), which can obtain data unique to commercial vehicles (such as engine torque, fuel consumption rate, emission status, etc.), while the OBD2 interface usually only provides basic emission related parameters. The adapter cable enables OBD2 interface vehicles to access these advanced data as well.

Diagnostic depth: For hybrid fleets (including commercial and passenger vehicles), technicians do not need to carry two sets of diagnostic tools and can complete comprehensive diagnosis through a single device.

3. Installation and ease of use

Plug and play: The direct design does not require complex configuration, and data can be transmitted directly through connection, suitable for fast on-site diagnosis.

Space adaptation: The 9-pin straight through male/female head can flexibly adapt to different device interface directions (such as limited device port orientation), reducing the risk of cable entanglement.

4. Durability and reliability

Industrial grade design: J1939 cables typically use high-strength materials (such as flame-retardant PVC, gold-plated contacts) to adapt to harsh environments (high temperature, vibration) in commercial vehicles. The adapter line inherits this characteristic to ensure long-term stable connection.

Anti interference capability: The twisted pair shielding structure can effectively reduce electromagnetic interference and ensure the accuracy of data transmission.
