Application of J1939 9Pin Pass Through Male/Female to OBD2 cable

Application of J1939 9Pin Pass Through Male/Female to OBD2 cable

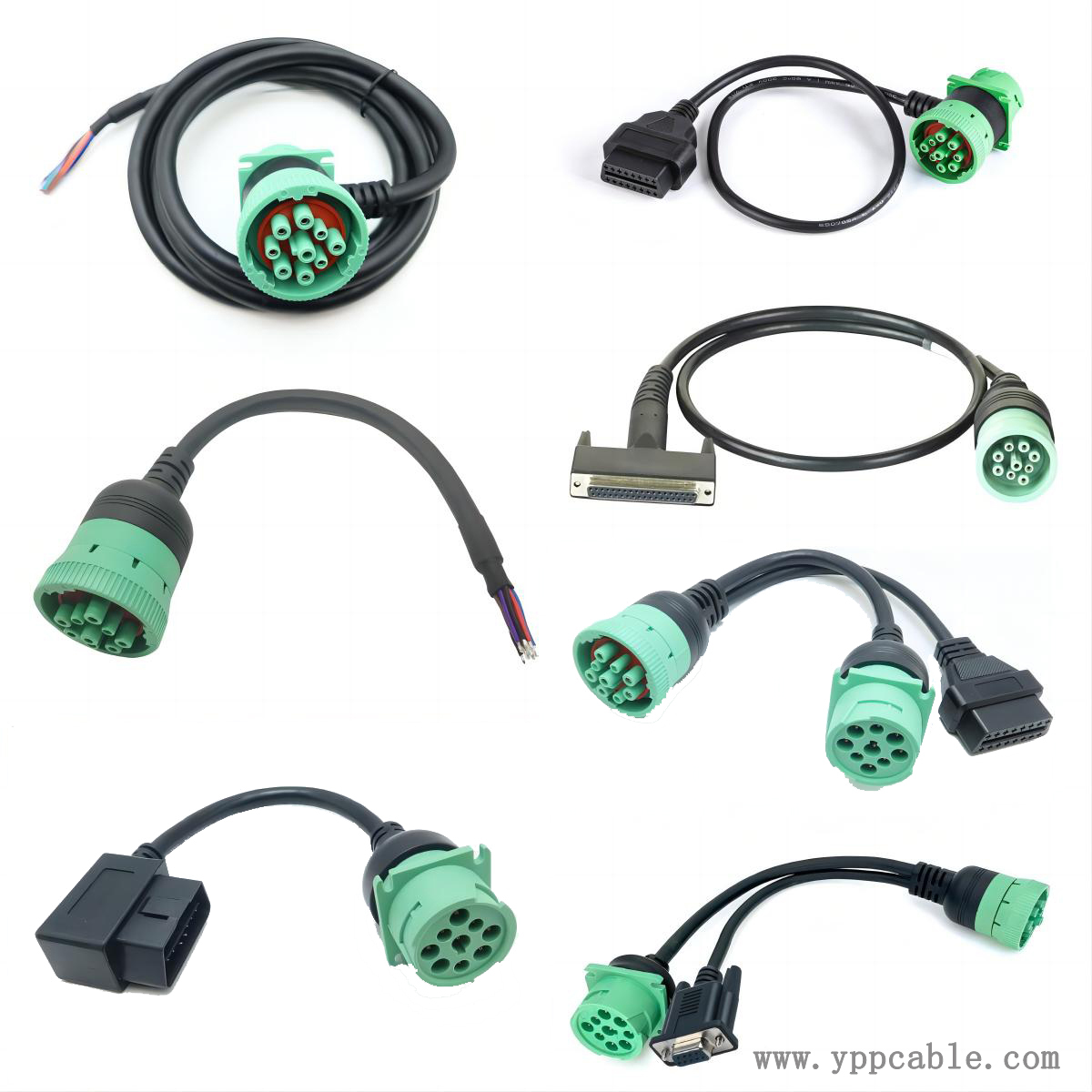

J1939 9Pin Pass Through Male/Female to OBD2 cable is an adapter cable used to connect J1939 interface and OBD2 interface, with the following characteristics and applications:

Product Features

Interface configuration: One end is a J1939 9-pin straight through male or female connector, and the other end is an OBD2 16 pin interface, which can achieve conversion between the two interfaces.

Material and process: High toughness and high temperature resistant materials are usually used, with flame-retardant shells and sealed rubber rings for easy insertion. The matching terminals of the connector are made of pure copper tin plated heads, which have excellent oxidation resistance and soldering performance, and can improve the conductivity of the connector contacts, ensuring the stability and reliability of electrical components. The electroplating adopts high-precision phosphorus copper matching electroplating process, which has the characteristics of waterproof, dustproof, durable and fast.

Function integration: It integrates the basic diagnostic function of J1939 heavy-duty truck standard communication protocol, which can prevent the original shunting line of the original vehicle.

Application scenarios

Vehicle diagnosis and data collection: applicable to all OBD2 interface vehicles, convenient for technicians to connect diagnostic tools, read vehicle fault codes and real-time data, and perform vehicle fault diagnosis and performance monitoring.

Truck GPS tracking: In the truck GPS tracking system, this cable can transmit vehicle data from the J1939 interface to the GPS tracking device on the OBD2 interface, achieving real-time monitoring of truck location, driving status, and other information.

Vehicle modification and upgrade: For some situations that require vehicle modification or upgrade, such as installing new onboard electronic devices, this cable can help achieve connection and communication between different interface devices.
