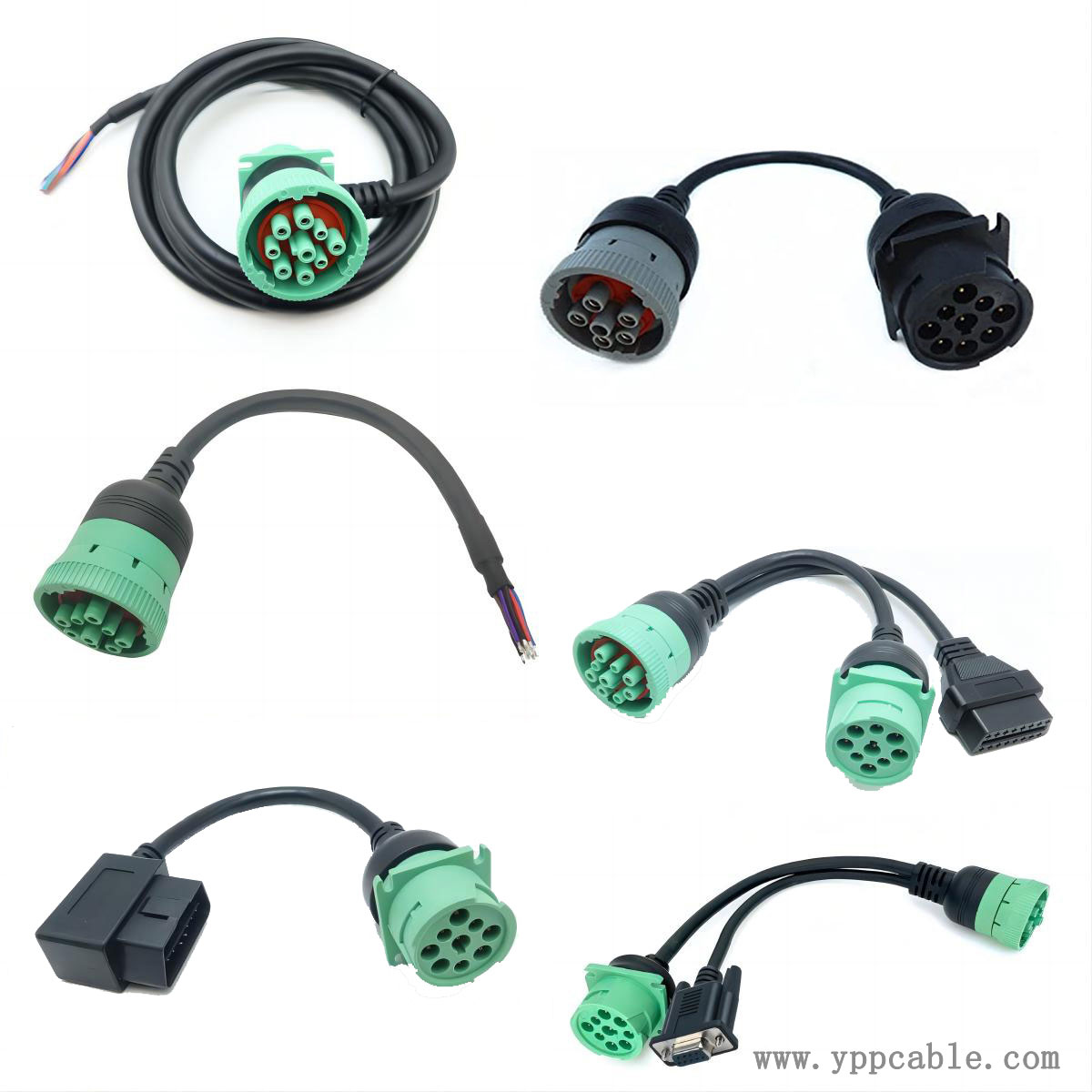

Attention should be paid to these details when installing J1939 cables: they directly affect the service life of the cables

Many users are aware of the importance of J1939 cables, but overlook installation details, leading to premature aging and damage of the cables, which in turn can cause communication failures. In fact, the installation of J1939 cable is not complicated. As long as a few common misconceptions are avoided, its service life can be effectively extended and communication stability can be guaranteed.

During installation, excessive bending should be avoided as it can cause conductor breakage, shielding layer detachment, and affect signal transmission. Secondly, it is necessary to stay away from high temperatures and sharp parts, and avoid high-temperature areas such as engines and exhaust pipes to prevent accelerated aging of the insulation layer; Avoid sharp edges and corners of the vehicle to prevent the cable sheath from being worn or damaged.

In addition, the grounding of the shielding layer must be standardized and strictly operated according to the requirements of single point grounding. The grounding point must be firm and reliable to avoid virtual grounding causing shielding failure. The cable joints need to be sealed to prevent water vapor and dust from entering, causing short circuits or signal interference. After installation, it is essential to check for any compression or damage to the cables to ensure proper installation.
