The core difference between J1939 cable and OBD2 cable, to avoid misunderstandings in selection

In the field of vehicle diagnosis and communication, J1939 cables and OBD2 cables are often confused, but there are essential differences in their positioning, usage, and performance. Selecting the wrong type can lead to issues such as communication failure and equipment damage, so it is important to distinguish between them. The core differences between the two are concentrated in three dimensions: applicable scenarios, protocol standards, and structural design. Only by accurately grasping these differences can the correct selection be made.

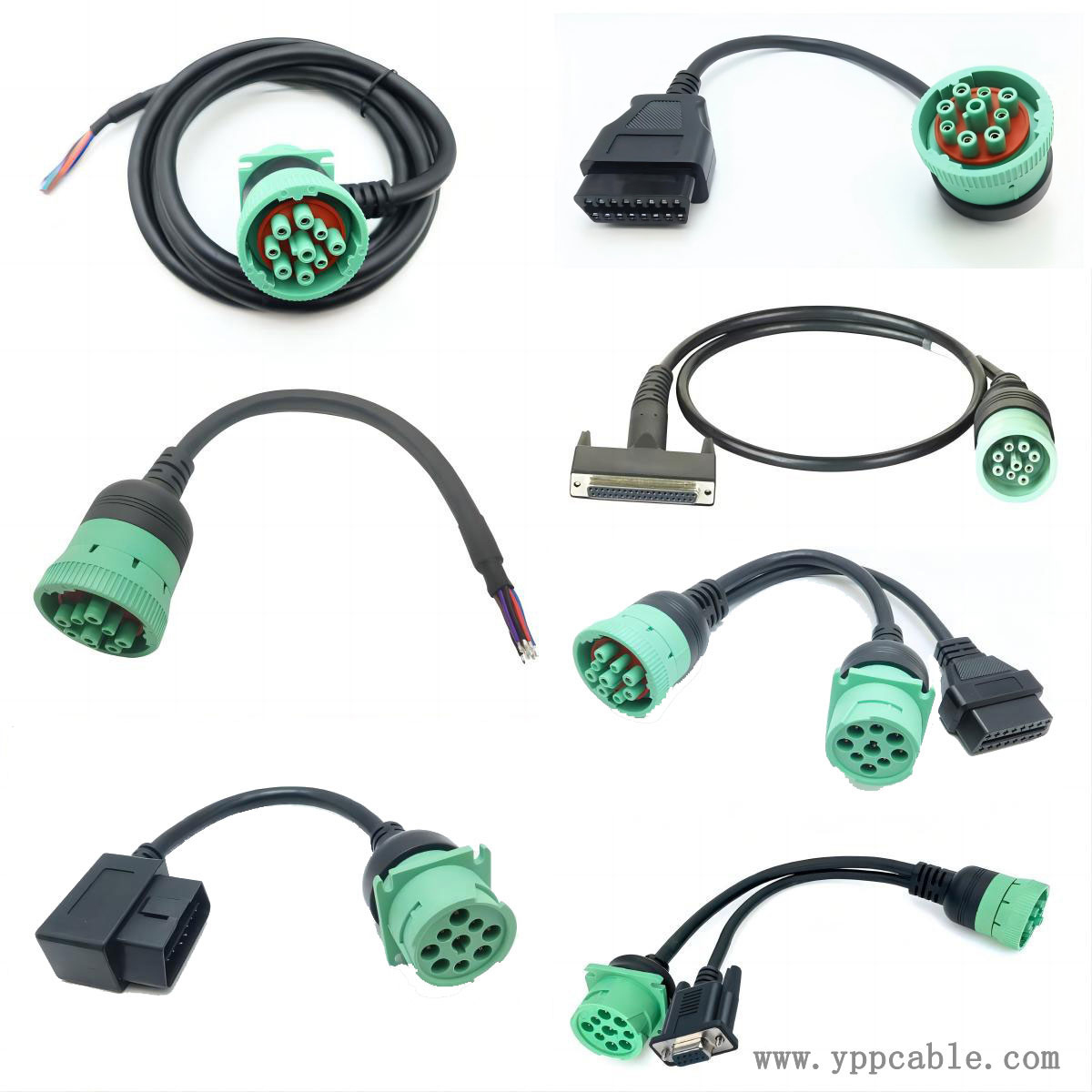

In terms of application scenarios, OBD2 cables are primarily used in light passenger vehicles and family cars, adapting to the OBD2 diagnostic interface and focusing on the diagnosis of basic electronic systems such as engines and transmissions. Conversely, J1939 cables are specifically designed for heavy-duty vehicles, adapting to 9-pin or 16-pin Deutsch connectors and being applied to trucks, construction machinery, agricultural machinery, etc., covering communication and diagnosis of complex modules such as engines, braking systems, and telematics.

In terms of protocol standards and structure, OBD2 cables adhere to the ISO 15031 protocol and typically feature unshielded or simply shielded designs, with lower transmission rates. Conversely, J1939 cables comply with the SAE J1939 protocol and are mandated to use a shielded twisted-pair structure with a characteristic impedance of 120Ω. This design enables high-speed, long-distance data transmission and offers enhanced anti-interference capabilities. Furthermore, J1939 cables exhibit superior weather resistance and oil resistance compared to OBD2 cables, making them well-suited for the harsh operating conditions of heavy-duty vehicles. When selecting cables, it is crucial to clearly understand the vehicle type and communication requirements to avoid substituting J1939 cables with OBD2 cables.
