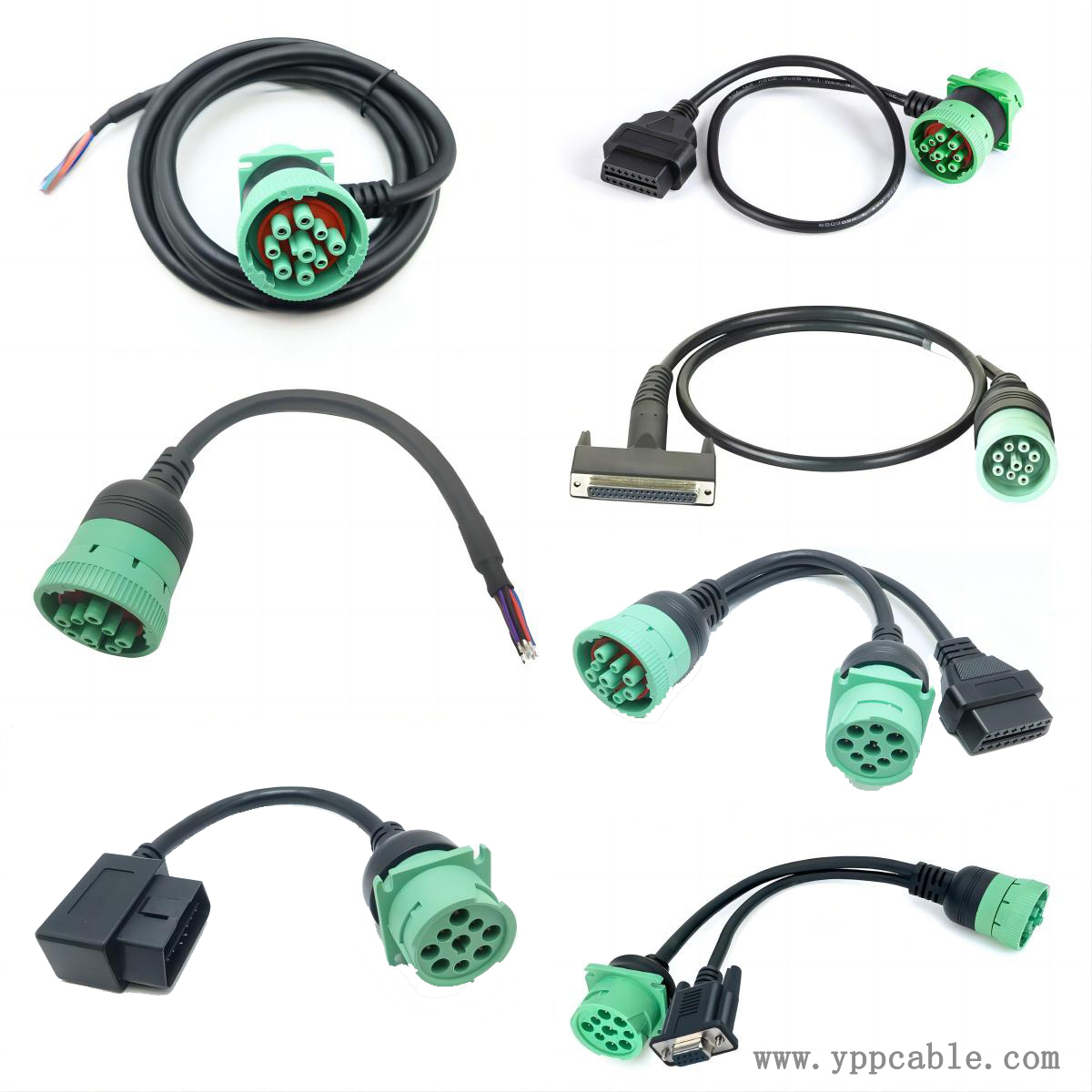

Application of DB37 female to J1939 9pin male cable

Application of DB37 female to J1939 9pin male  cable

The DB37 female to J1939 9-pin male diagnostic cable is mainly used in the following fields:

In the field of commercial vehicles:

Fault diagnosis: In commercial vehicles such as heavy-duty trucks and buses, the electronic control system of the vehicle is relatively complex, including multiple electronic control units (ECUs) such as engine control module, transmission control module, anti lock braking system, etc. By connecting the professional diagnostic equipment to the J1939 interface of the vehicle through this diagnostic cable, technicians can read the fault codes stored in each ECU of the vehicle, quickly locate the fault, and determine whether the engine fault is caused by sensor failure or control module failure.

Performance monitoring and debugging: In the process of vehicle development and production, engineers use this cable to connect testing equipment and vehicle systems, real-time monitoring of vehicle operating status parameters such as engine speed, torque, vehicle speed, transmission gear, etc., in order to evaluate and debug vehicle performance, optimize vehicle power performance, fuel economy, etc.

In the field of industrial equipment:

Construction machinery, such as loaders, excavators, cranes, etc., also use a similar J1939 communication protocol for their control systems. This cable can be used to connect diagnostic equipment to the control system of construction machinery for fault diagnosis and maintenance, ensuring that the equipment operates normally in harsh working environments, reducing downtime, and improving work efficiency.

Agricultural equipment: Large agricultural machinery such as combine harvesters, tractors, etc. are increasingly using electronic control systems. By using the DB37 female head to J1939 9-pin male head diagnostic cable, technicians can diagnose and debug the engine, hydraulic system, sowing and fertilization system of agricultural equipment, ensuring the smooth progress of agricultural production.

Other fields:

Power generation equipment: Some power generation equipment, such as diesel generator sets, may have control systems that follow the J1939 protocol. This diagnostic cable can be used to monitor and diagnose faults in the operation status of power generation equipment, ensuring stable power supply to the equipment.

Pump machinery: Some large pump equipment, especially pumps used in industrial processes, may use J1939 communication for their control and monitoring systems. Through this cable, the monitoring of pump operating parameters and fault diagnosis can be achieved, ensuring the normal operation of the pump and avoiding production process interruptions caused by pump failures.
