Precautions for purchasing DB37 female to J1939 9-pin male cable

Precautions for purchasing DB37 female to J1939 9-pin male cable

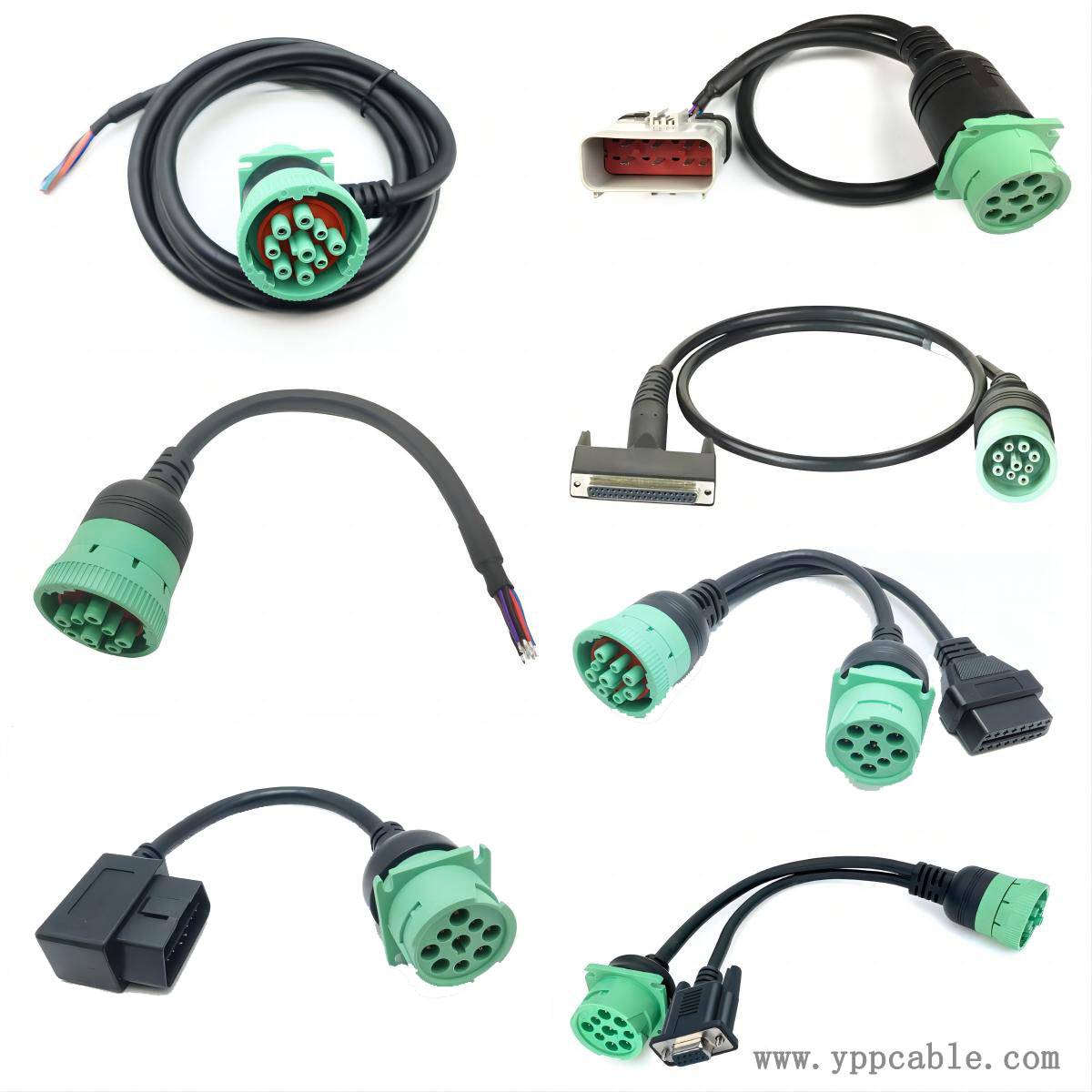

When purchasing DB37 female to J1939 9-pin male cables, it is necessary to comprehensively consider interface compatibility, electrical performance, cable quality, compatibility with application scenarios, brand and certification, price and after-sales service to ensure that actual usage needs are met. The following are specific precautions:

1、 Interface and protocol compatibility

Interface physical matching

DB37 Female Head: Confirm the pin definitions (such as the positions of signal lines, ground lines, and power lines), which may vary among different manufacturers (such as pin functions in industrial control and automotive fields).

J1939 9-pin male connector: Strictly follow the standard pin allocation of SAE J1939 protocol (such as CAN_S, CAN_L, GND, shielding layer, etc.) to ensure compatibility with equipment (such as ECU of trucks and agricultural machinery).

Suggestion: Request the pin definition diagram provided by the manufacturer and compare it with the device manual to avoid communication failures or equipment damage caused by pin misalignment.

protocol compatibility

J1939 belongs to the vehicular network protocol, used for CAN communication of heavy vehicles and equipment. Ensure that the cable supports the electrical characteristics of J1939 protocol, such as differential signal transmission and impedance matching, rather than ordinary CAN bus cables.

2、 Requirements for electrical performance

Impedance matching

J1939 cables need to use impedance matched twisted pair cables to reduce signal reflection and interference.

Attention: If the cable does not have a built-in terminal resistor, it is necessary to confirm whether the device end has been correctly configured.

Shielding and anti-interference capability

Choose double-layer shielded cables (such as aluminum foil+braided mesh) to improve their resistance to electromagnetic interference (EMI) and radio frequency interference (RFI), especially suitable for industrial environments or high-frequency electromagnetic environments in vehicles.

The shielding layer needs to be reliably grounded (such as through the metal shell of the connector) to avoid grounding loop problems.
