J1939 to open end cable is the bridge link for vehicle communication

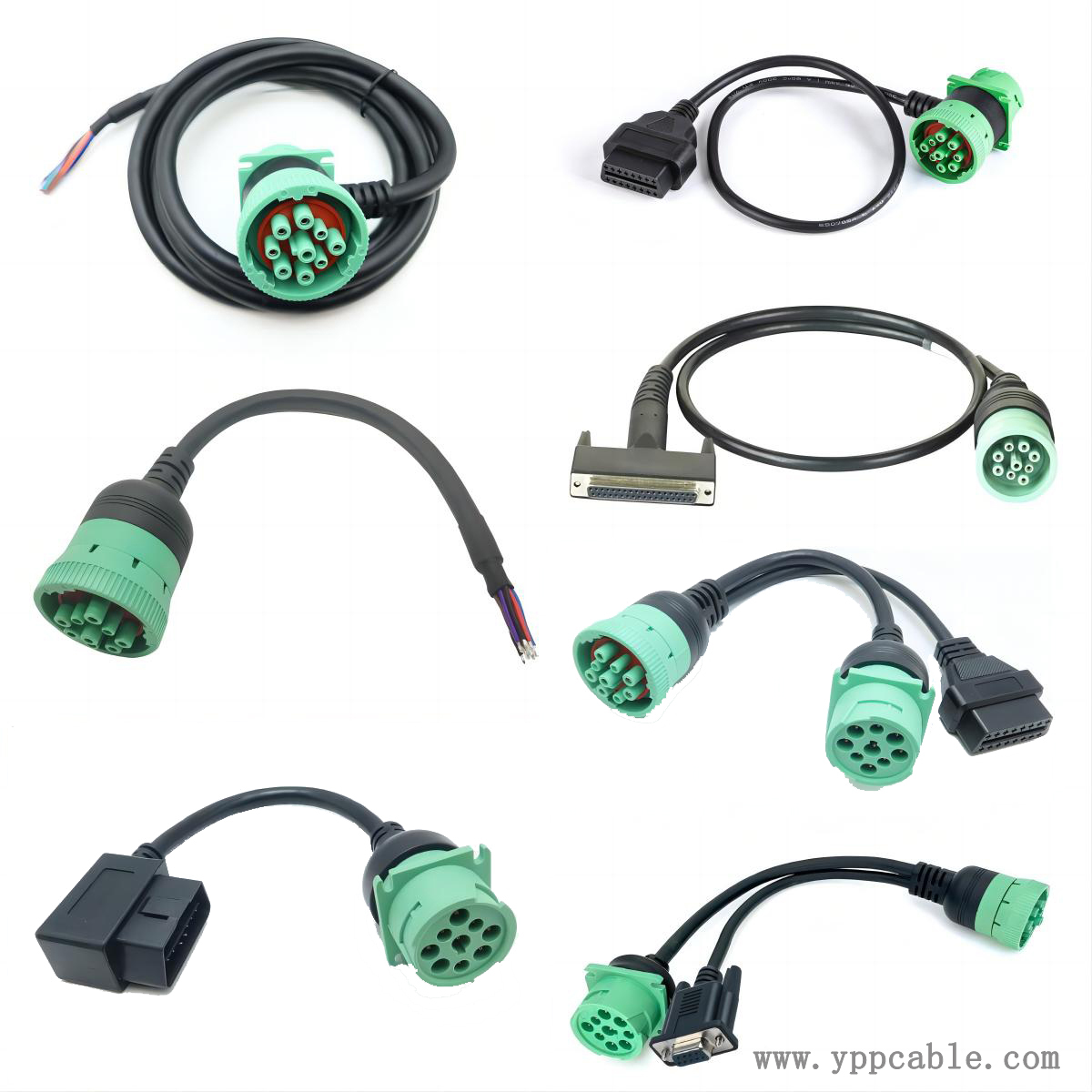

In the complex electronic systems of vehicles, stable and efficient communication is crucial. The J1939 to open end cable serves as a key component for connecting different devices and plays a bridging role.



J1939 protocol is a high-level communication protocol based on CAN bus, widely used in commercial vehicles, ships, agricultural and forestry machinery and other fields. It uses a 29 bit extended identifier to enable high-speed and reliable communication between multiple electronic control units (ECUs). The open-ended cable has a flexible interface design, which can be easily connected to various devices.



In the power system of a vehicle, the ECU of key components such as the engine and transmission communicates through the J1939 protocol. J1939 to the open end cable connects the engine ECU and transmission ECU to achieve real-time transmission of parameters such as torque and speed. For example, when the driver steps on the accelerator pedal, the engine ECU transmits torque demand information to the transmission ECU through this cable. The transmission ECU adjusts the gear based on the received information to ensure smooth and efficient power output of the vehicle.



In the diagnostic system of vehicles, the J1939 to open end cable also plays an important role. It can transmit the fault information of various ECUs in the vehicle to diagnostic equipment, and technicians can quickly and accurately locate the cause of the fault and improve maintenance efficiency by reading this information. For example, when a vehicle experiences an engine malfunction, the engine ECU will send the fault code to the diagnostic interface through the cable. Technicians can use professional diagnostic tools to read the fault code and determine which component has the problem.



In addition, in the intelligent driving system of vehicles, the J1939 to open end cable can also achieve data transmission between sensors and control units, providing support for the implementation of intelligent driving functions. It is like the neural network in the vehicle's electronic system, ensuring smooth "communication" between various components and ensuring the normal operation of the vehicle.
