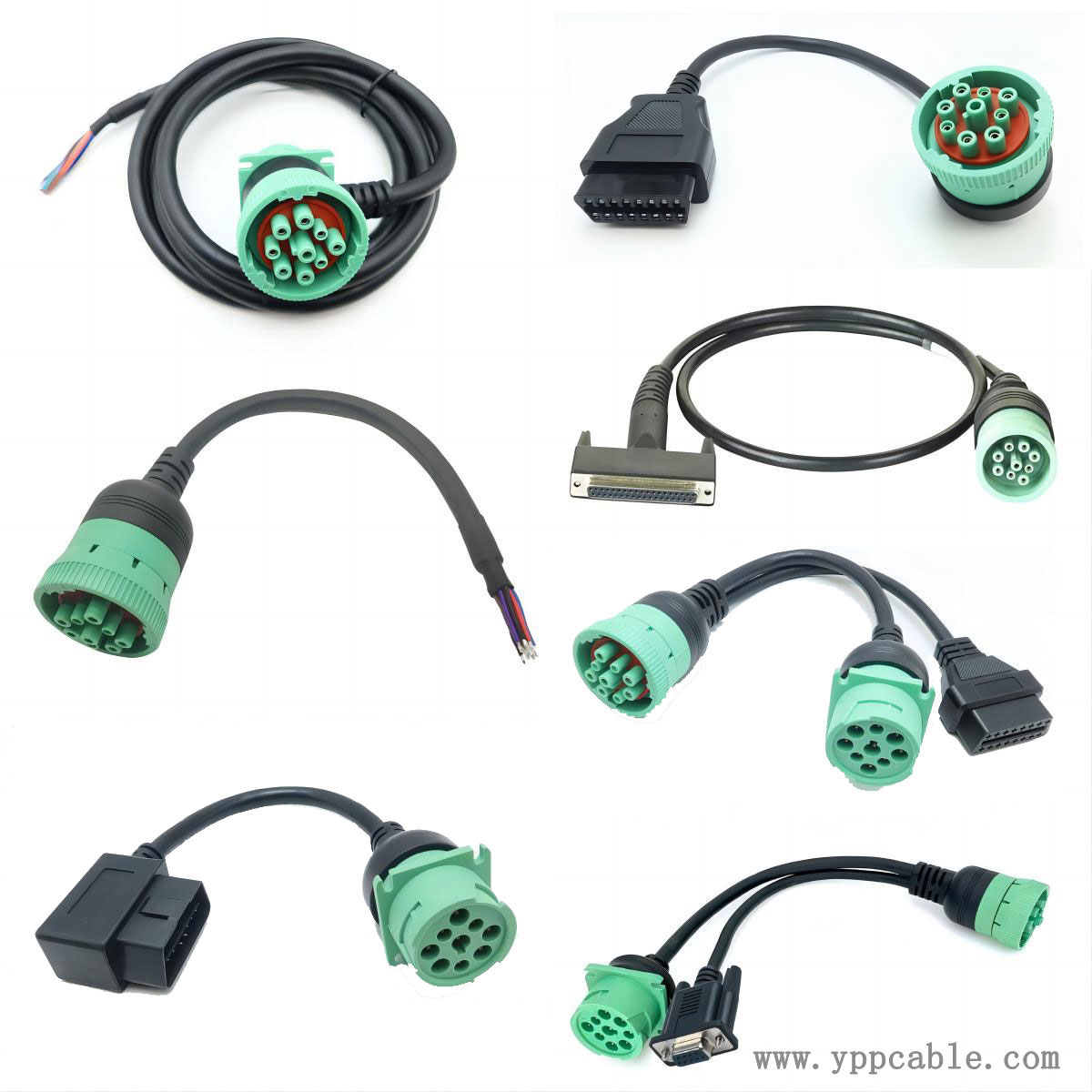

Daily maintenance guide for J1939 to right angle OBD2 cable

Daily maintenance guide for J1939 to right angle OBD2 cable

As a key component for commercial vehicle diagnosis and data acquisition, the stability of J1939 to right angle OBD2 cable directly affects the efficiency of vehicle fault diagnosis and the reliability of remote monitoring. Daily maintenance needs to be carried out from the following four dimensions:

1、 Physical connection status check

Before driving every day, it is important to check the mechanical integrity of the right angle joints. Adopting segmented troubleshooting method: Firstly, confirm whether the locking buckle between the 9-pin J1939 male head and the vehicle diagnostic interface is completely closed to avoid poor contact caused by vibration; Next, check whether there is oxidation blackening phenomenon on the 16 pin pin of the OBD2 female head, especially paying attention to the conductivity of CAN-H (pin 6) and CAN-L (pin 14).

2、 Electrical performance testing

Professional testing equipment is required for in-depth inspection every week. According to the maintenance standards, it is necessary to measure the terminal resistance value of the J1939 main harness. If the resistance deviates from the standard value, the terminal resistor should be replaced immediately.

3、 Environmental adaptability maintenance

For the complex operating environment of commercial vehicles, a three-level protection mechanism needs to be established: the first level protection adopts IP67 dustproof and waterproof joints to prevent mud and water from entering; Apply conductive silver paint at the interface for secondary protection to reduce micro corrosion caused by high-frequency vibration; The third level protection adopts a shielded twisted pair structure, which has been tested to reduce electromagnetic interference.

4、 Software Compatibility Management

With the iteration of vehicle ECU software, it is necessary to regularly update the J1939 protocol stack of the diagnostic instrument. Pay special attention to updating the mapping relationship between PGN (parameter group number) and SPN (suspicious parameter number).
