Introduction and Function of J1939 Cable

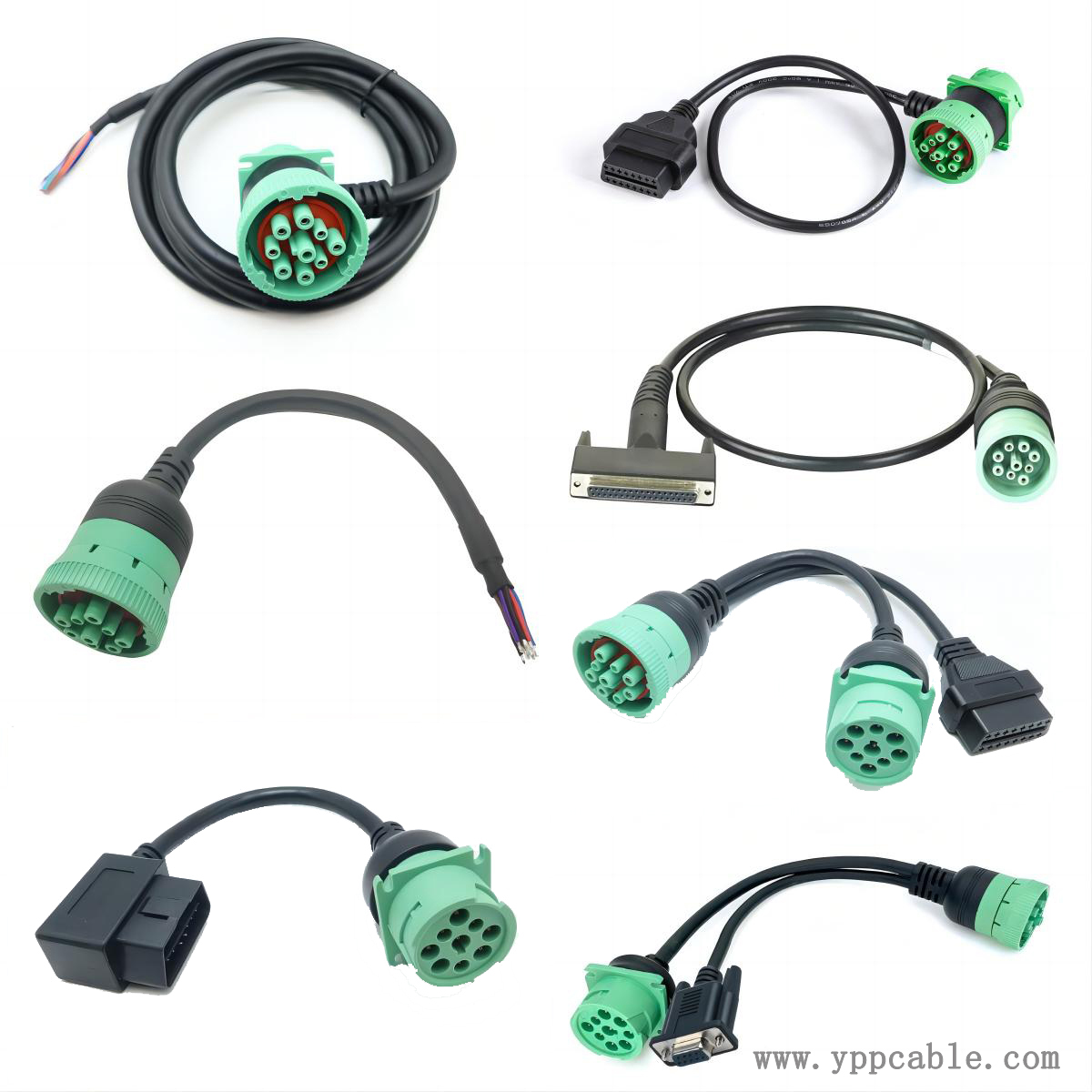

J1939 cable is an important component of communication networks in the fields of commercial vehicles and heavy equipment. It is based on CAN bus technology and builds a bridge for data transmission between different electronic control units (ECUs) inside the vehicle.

The physical layer of J1939 cable has strict specifications and usually uses shielded twisted pair cables. This design can effectively reduce electromagnetic interference and ensure stable signal transmission. There are clear standards for connector types, pin assignments, and electrical characteristics, ensuring compatibility between different devices.

In terms of data transmission, J1939 cable supports point-to-point and broadcast communication. Point to point communication is used for data exchange between specific devices, such as engine controllers sending torque requests to transmission controllers; Broadcast communication can simultaneously send information to multiple devices, such as broadcasting vehicle speed information to the dashboard and remote information processing system.

J1939 cables also have powerful diagnostic capabilities. By using specific message parameter sets (PGN) and parameter numbers (SPN), the operational status of various systems in the vehicle can be monitored in real time, and potential faults can be detected in a timely manner.

In addition, the application of J1939 cables reduces the complexity of vehicle wiring harnesses, reduces weight, and improves the space utilization of vehicles. It provides basic support for the implementation of advanced driving assistance systems, vehicle networking, and other advanced functions, promoting the development of commercial vehicles and heavy equipment towards intelligence and networking.
