J1939 9-pin cable plays a key role in vehicle diagnosis and debugging, and its application is mainly based on the SAE J1939 protocol, which is a widely used communication standard in commercial vehicles and industrial equipment. The following are the specific applications of J1939 9-pin cable in vehicle diagnosis and debugging:

1、 Hardware Connection and Communication Fundamentals

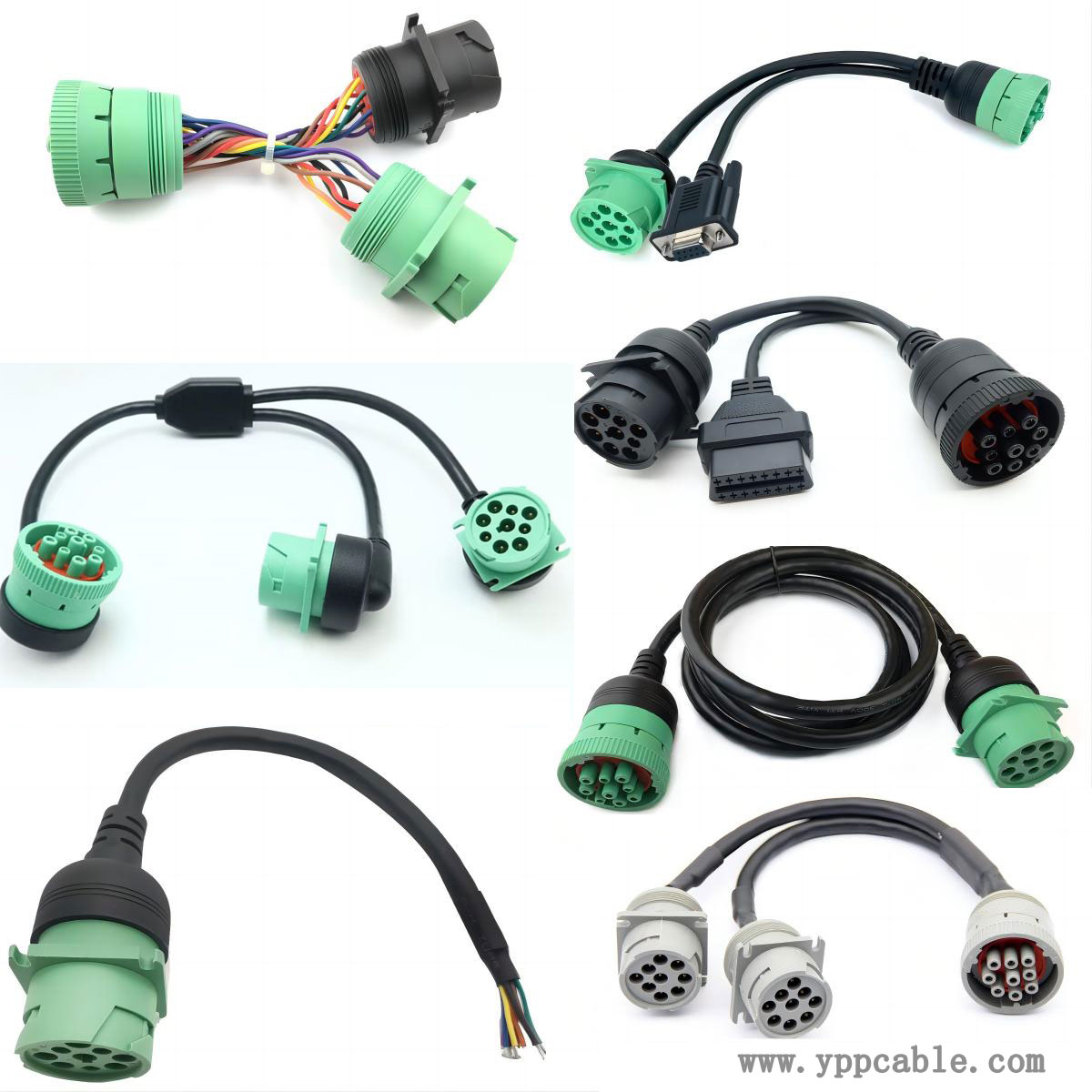

Physical interface: J1939 9-pin cables typically use standard 9-pin D-Sub connectors, which are sturdy and durable, suitable for in car environments. The cable contains CAN-H, CAN-L, and shielded wires to ensure the stability and anti-interference ability of signal transmission.

Communication protocol: J1939 protocol is based on CAN bus technology, using 29 bit extended identifiers and extended data frames, with a typical communication rate of 250Kbps. This high-speed and reliable communication method enables various electronic control units (ECUs) on the vehicle to exchange data in real-time.

2、 Vehicle diagnostic application

Fault diagnosis: When a vehicle malfunctions, the ECU generates a diagnostic fault code (DTC) and sends it through the J1939 network. Using J1939 9-pin cable, diagnostic tools can connect to the vehicle network to read these DTCs, thereby helping technicians quickly locate the cause of the fault.

Real time data monitoring: In addition to fault diagnosis, the J1939 9-pin cable also allows technicians to monitor various parameters of the vehicle in real time, such as engine speed, vehicle speed, oil pressure, etc. These data are crucial for evaluating vehicle performance, conducting preventive maintenance, and optimizing vehicle configuration.

3、 Debugging and development of applications

ECU programming and configuration: During vehicle development or maintenance, technicians may need to use J1939 9-pin cables to program or configure the ECU. Through cables, they can upload new software or configuration data to the ECU, or adjust the parameters of the ECU.

Network testing and validation: During the design or development phase of vehicle networks, J1939 9-pin cables are also used for network testing and validation. Technicians can use cables to connect various ECUs, simulate actual operating environments, and test the communication performance, stability, and reliability of the network.

4、 Tools and software support

Diagnostic tools: There are many diagnostic tools on the market that support the J1939 protocol, which are typically equipped with J1939 9-pin cable interfaces. Technicians can use these tools to connect to the vehicle network for fault diagnosis, data monitoring, and ECU configuration operations.

Developing software: For vehicle developers, they may need to use specialized development software to write and test code related to J1939 networks. These software typically also support communication with the vehicle network through J1939 9-pin cables.
