What are the applications of J1939 cable in heavy-duty vehicles?

What are the applications of J1939 cable in heavy-duty vehicles?

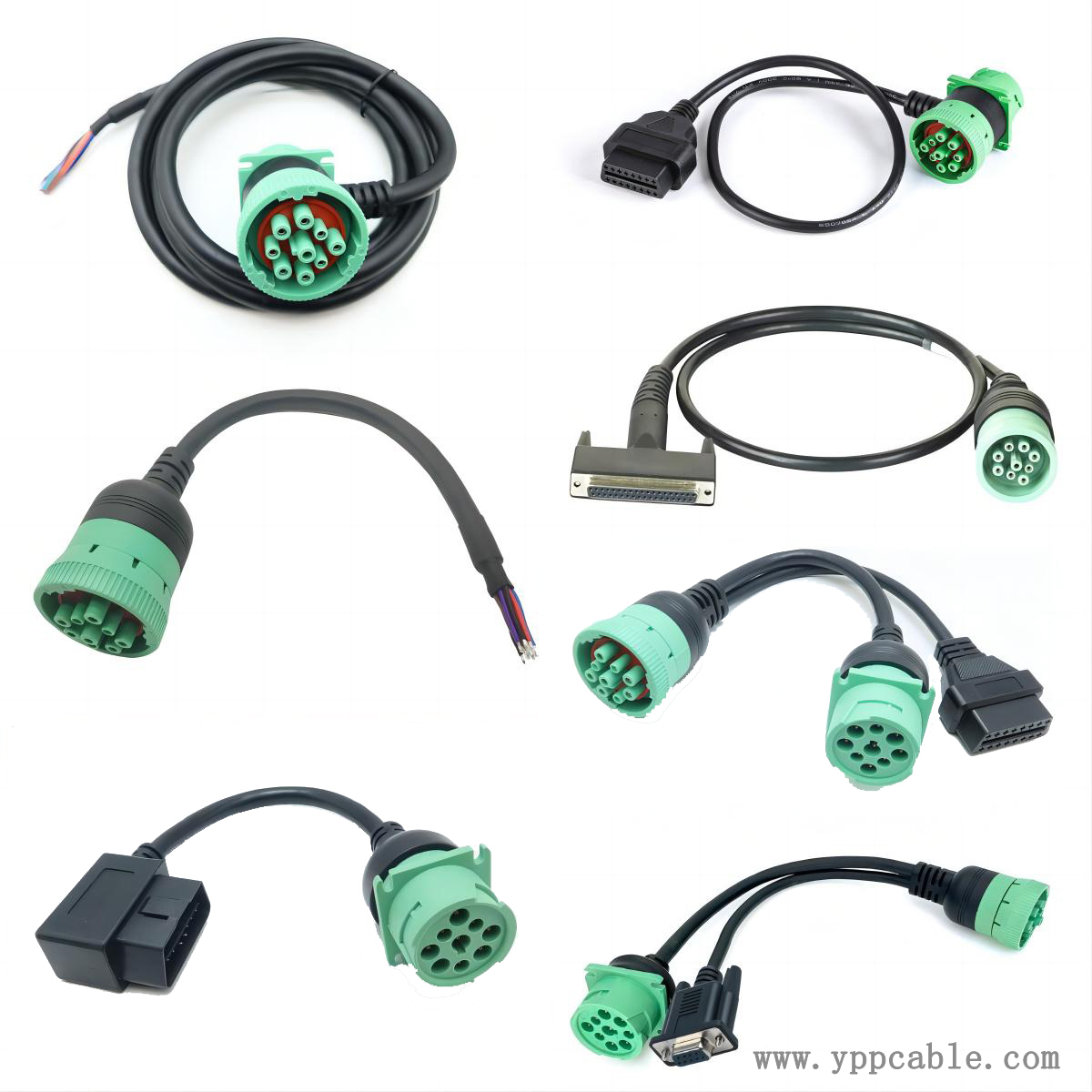

J1939 cable is widely used and critical in heavy-duty vehicles. It is a communication cable based on the SAE J1939 protocol, which is a widely adopted communication standard in the field of heavy-duty vehicles. It is mainly used for communication between electronic systems of heavy-duty vehicles such as trucks, buses, and construction machinery. The following are the main applications of J1939 cable in heavy-duty vehicles:

Engine management system communication:

J1939 cable is used to connect the engine control unit (ECU) with other vehicle systems, such as transmission, dashboard, etc., to achieve real-time transmission and monitoring of engine operating parameters (such as speed, water temperature, oil pressure, etc.).

Through the J1939 protocol, the engine management system can collaborate with other systems to optimize engine performance, improve fuel efficiency, and reduce emissions.

Vehicle condition monitoring and diagnosis:

J1939 cable supports the transmission of fault diagnosis information between various systems of the vehicle, enabling maintenance personnel to quickly locate and solve problems.

By monitoring the vehicle's status in real-time, such as tire pressure, brake system status, etc., potential faults can be detected in advance, improving driving safety.

Body control system integration:

In heavy vehicles, the body control system includes multiple subsystems such as lighting, air conditioning, and door control. J1939 cable is used for communication between these subsystems to achieve integrated control of vehicle functions.

Through the J1939 protocol, the vehicle control system can interact with other vehicle systems (such as engine management system, chassis control system, etc.) to improve the intelligence level of the entire vehicle.

Chassis control system communication:

The chassis control system includes key components such as suspension, steering, and braking. J1939 cables are used for communication between these components to ensure the stability and safety of the chassis system.

By real-time transmission of chassis status information, such as suspension height, steering angle, etc., adaptive adjustment of the chassis system can be achieved, improving the handling and comfort of the vehicle.

Fleet management and remote monitoring:

J1939 cable supports communication between vehicles and remote monitoring centers, allowing fleet managers to have real-time access to vehicle status, location, driving trajectory, and other information.

Through remote monitoring and data analysis, fleet managers can optimize vehicle scheduling, improve transportation efficiency, and reduce operating costs.

Application of new energy vehicles:

In new energy heavy-duty vehicles, J1939 cables are used for communication between key components such as battery management systems and motor controllers.

By transmitting real-time information such as battery status and motor operating parameters, efficient operation and safety management of new energy vehicles can be achieved.
