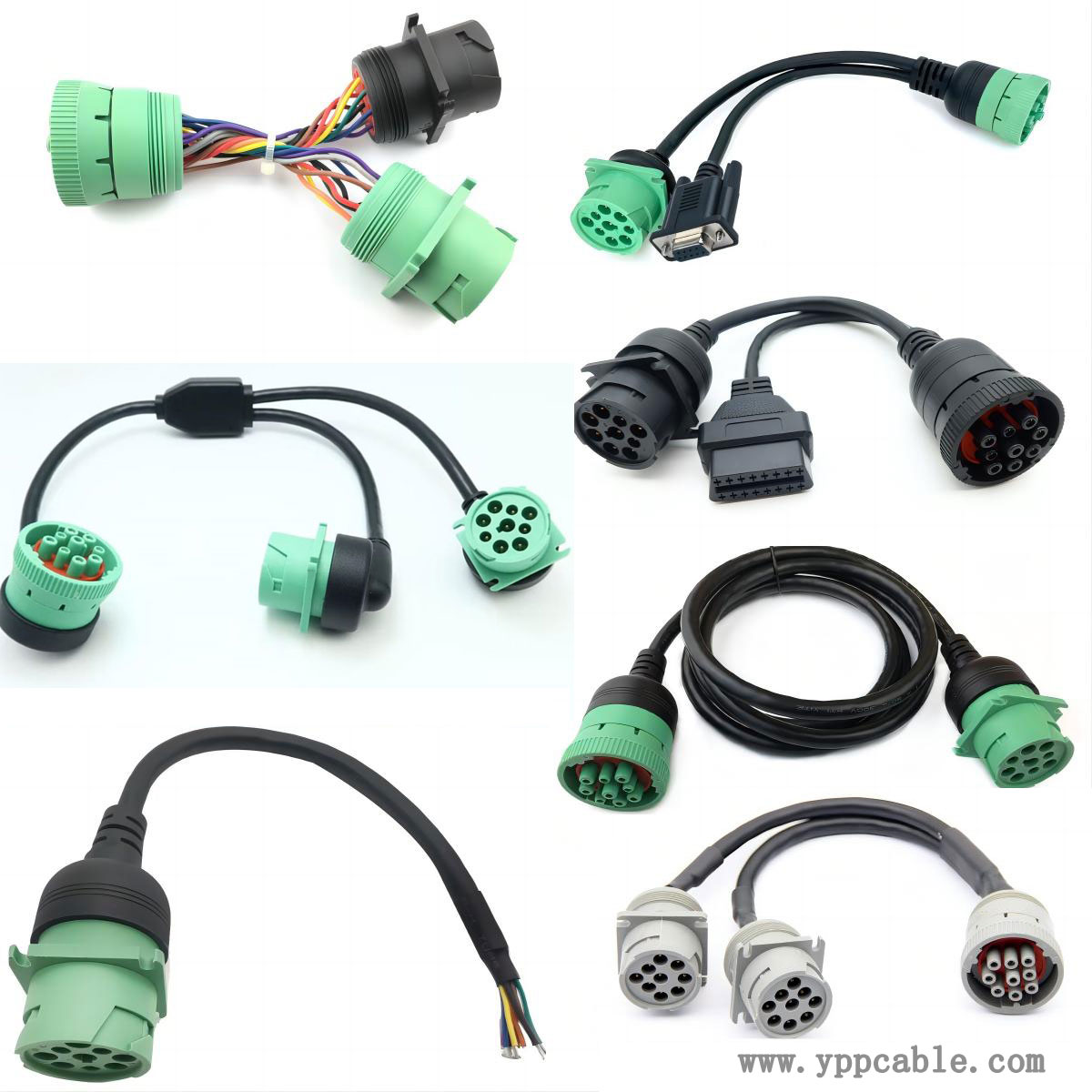

Quality inspection method of J1939 splitter Y cable

Quality inspection method of J1939 splitter Y cable

To ensure the quality of J1939 splitter Y cable meets the requirements and ensure the stable operation of heavy-duty vehicle communication systems, scientific and effective quality inspection methods need to be adopted. Quality inspection runs through the entire process of cable production, installation, and use, mainly including appearance inspection, electrical performance testing, and communication function testing.

Visual inspection is the most basic testing method. Check the appearance of the cable for flatness, damage, scratches, deformation, and other conditions. At the same time, check if the connector is intact and if there are any issues such as looseness or oxidation. Visual inspection can promptly detect defects on the surface of the cable, avoiding any impact on the performance and service life of the cable due to appearance issues.

Electrical performance testing is a crucial step in quality inspection. Including insulation resistance testing, withstand voltage testing, and conductivity testing. Measure the insulation resistance of the cable using an insulation resistance tester to ensure compliance with standard requirements and prevent signal leakage and short circuits. By applying a certain voltage to the cable through a withstand voltage testing device, the withstand voltage performance of the cable is tested to avoid damage to the cable due to overvoltage. The conductivity test evaluates the electrical conductivity of the cable by measuring its resistance, ensuring low loss in signal transmission.

The communication function test is the key to verifying whether the J1939 splitter Y cable can achieve normal signal splitting transmission and communication. Professional testing equipment can be used to simulate sending and receiving J1939 messages, check whether the cable can accurately split the signal and transmit it to different receiving ends, and ensure that the receiving end can correctly parse the message content. Communication function testing can comprehensively evaluate the communication performance of cables, ensuring that they meet the communication needs of heavy-duty vehicles. Through strict quality inspection methods, the quality of J1939 splitter Y cable can be effectively guaranteed, providing a guarantee for the stable operation of vehicle communication systems.
