In the process of intelligent upgrading of modern agricultural machinery, J1939 to OBD2 cable is becoming a key bridge connecting heavy equipment and general diagnostic tools. Taking tractors as an example, their power systems, hydraulic devices, and agricultural tool control units commonly use the J1939 protocol to build internal communication networks, while the OBD2 diagnostic instrument commonly used by maintenance personnel is designed based on passenger car standards. This protocol difference has led to the need for specialized tools for equipment testing, increasing maintenance costs and operational complexity. The emergence of J1939 to OBD2 cable achieves seamless integration between agricultural machinery and general diagnostic equipment through dual conversion of physical layer and protocol layer.

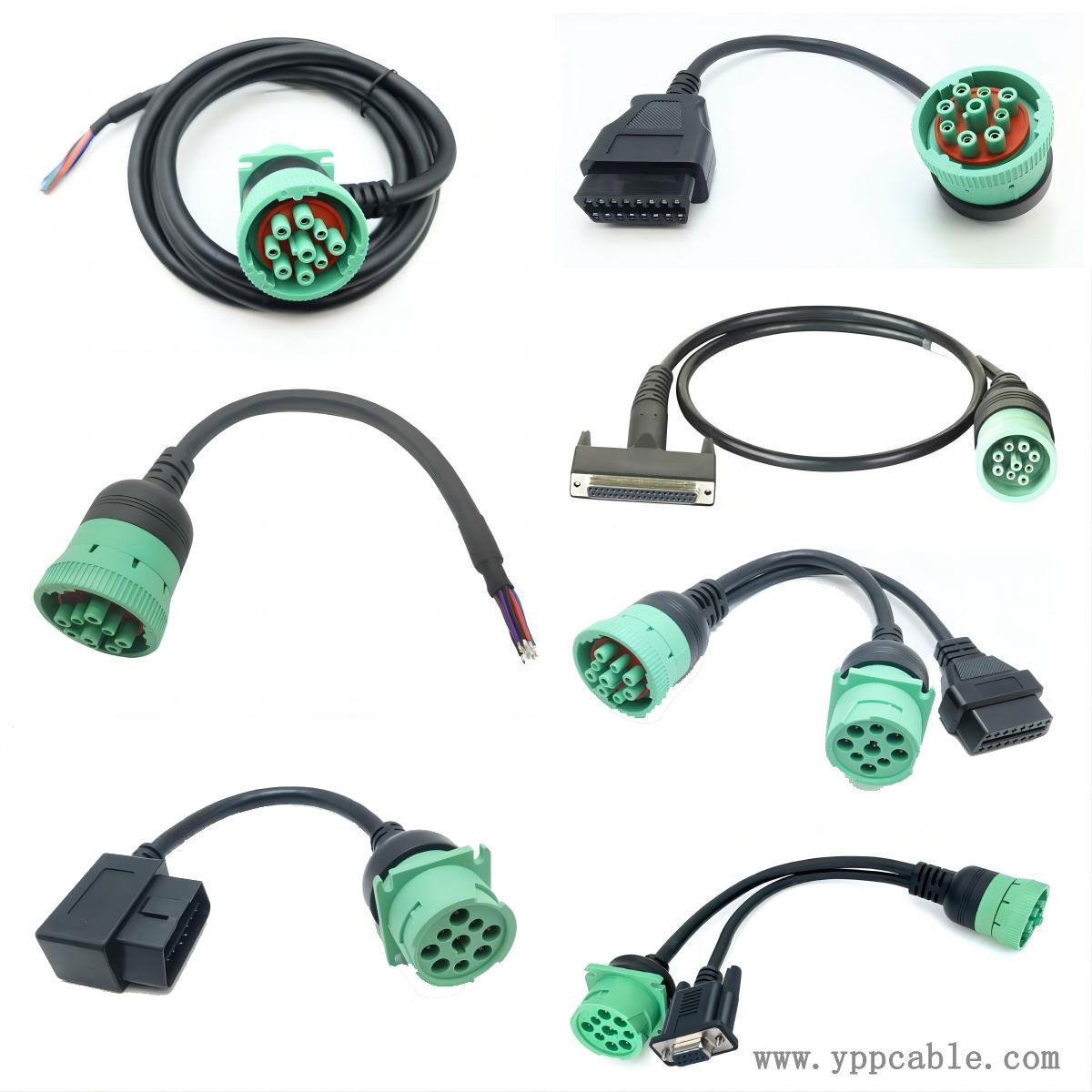

From a technical implementation perspective, the cable uses a 9-pin J1939 male connector to connect to the tractor ECU, a 16 pin OBD2 female connector to interface with the diagnostic instrument, and an internally integrated protocol conversion chip that can automatically process the mapping relationship between 29 bit CAN identifiers and 11 bit OBD2 identifiers.

In practical applications, after using conversion cables, the equipment fault diagnosis time is shortened, and maintenance personnel do not need to memorize complex parameter group numbers. They can directly obtain fault codes and real-time data through the diagnostic instrument menu.

With the development of precision agriculture, the J1939 to OBD2 cable is evolving from a single diagnostic tool to a data acquisition terminal. Some high-end products have integrated wireless transmission modules, which can upload real-time agricultural machinery operation data to the cloud management platform, providing basic communication support for intelligent applications such as variable fertilization and autonomous driving. This technological integration not only lowers the threshold for digital transformation of agricultural machinery, but also promotes the entire industry to move towards standardization and intelligence.
