Specification for installation and use of J1939 to J1708 cable

Specification for installation and use of J1939 to J1708 cable

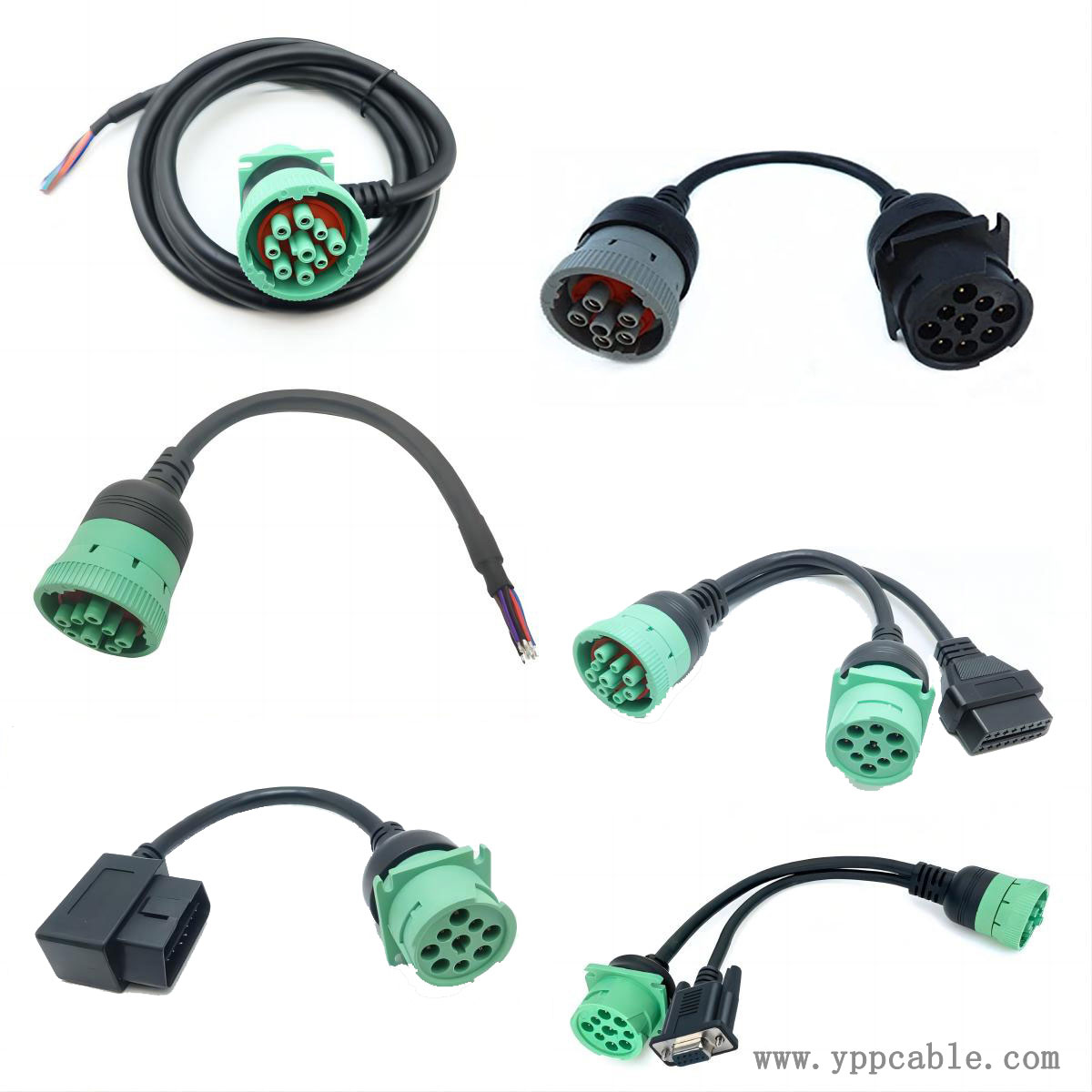

The J1939 to J1708 cable supports plug-and-play functionality, but proper installation and use can extend its lifespan, ensure stable communication, and prevent malfunctions.

Power off before installation: Before operation, turn off the vehicle power, remove the key, and prevent damage to the ECU or diagnostic equipment due to hot plugging. Check the interfaces: Connect the J1939 port to the new device (diagnostic instrument, on-board terminal), and connect the J1708 port to the original vehicle interface. Confirm the male and female match, align the positioning slot, and avoid damaging the pins by forced insertion.

Fixing cables: Due to the high vibration during vehicle operation, use cable ties to secure the cables to the vehicle body, keeping them away from high-temperature exhaust pipes, moving parts, and high-voltage wires to avoid wear, crushing, or interference. Do not bend excessively, maintain a curvature at turns to protect the internal core wires.

Caution during use: Avoid frequent hot plugging to reduce wear on the connector; keep the interface dry and clean, as water and oil contamination can lead to poor contact; if communication fails, first check whether the connector is loose and the pins are oxidized, and then check whether the cable shielding is properly grounded.

Storage and maintenance: When not in use for a long time, coil the cable neatly and put on a dust cap; if the outer skin is damaged or the shielding layer is exposed, replace it immediately to avoid short circuits.

Following simple specifications can ensure the long-term stable operation of the conversion cable. Despite its simple structure, installation details directly affect its reliability. Proper use can not only guarantee stable data transmission but also protect the vehicle's electronic control system and external devices, enhancing overall safety.
