RP1226 to J1939 cable: Characteristics and advantages

RP1226 to J1939 cable: Characteristics and advantages

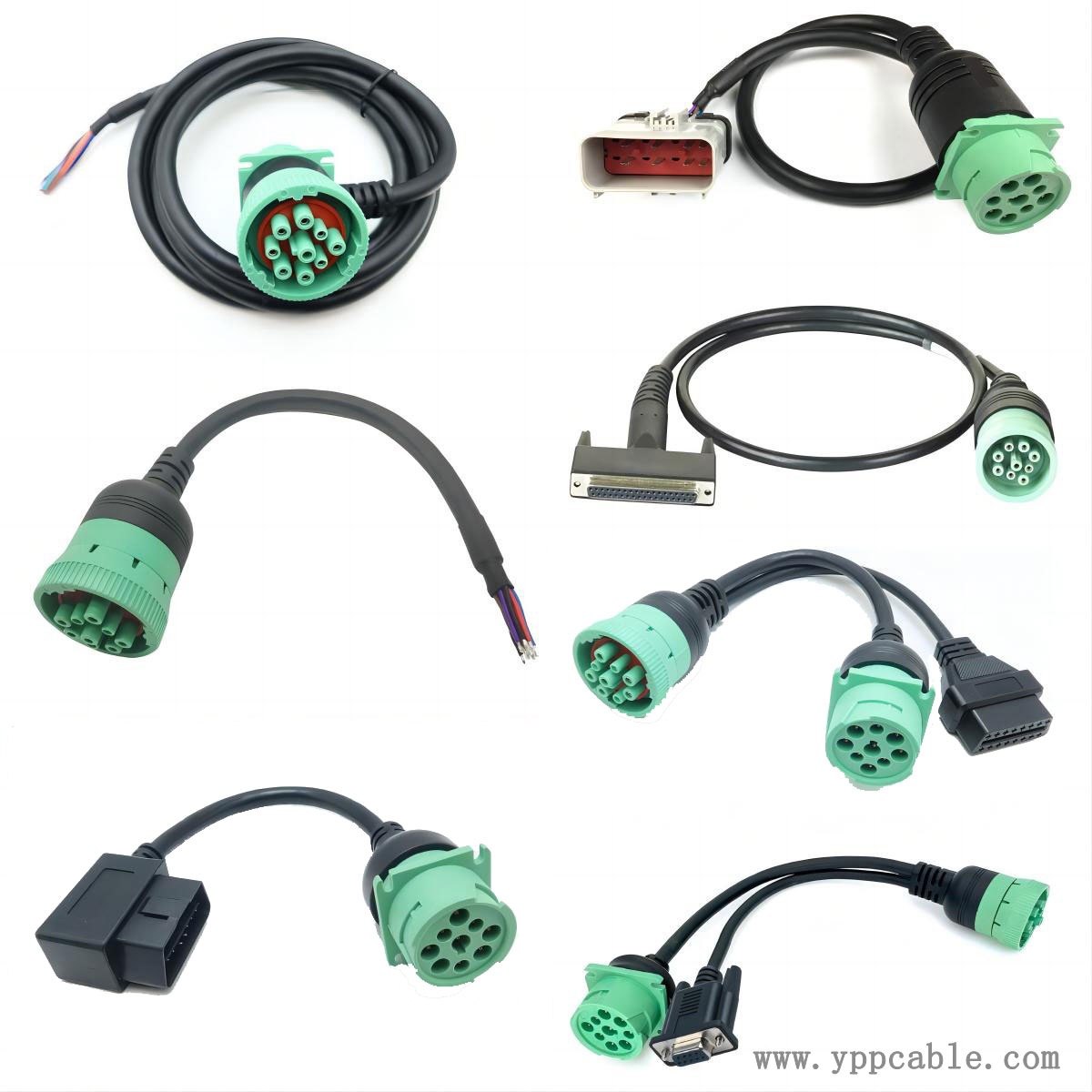

The RP1226 to J1939 cable has many significant features in design and manufacturing, making it stand out in the field of vehicle communication.

From the perspective of cable material, high-quality materials are selected. For example, power transmission wires usually use # 18 AWG specifications, which have a moderate diameter to ensure sufficient current carrying capacity and reduce the weight and volume of the cable to a certain extent, ensuring stable power supply to equipment. For communication lines, # 20 AWG twisted pair cables are used. The structural design of twisted pair cables can effectively reduce interference during signal transmission, ensure communication accuracy and stability, and enable high-speed and reliable data transmission.

The overall structure of the cable is also very sophisticated. It has a standard cable sheath, which has good wear resistance, corrosion resistance, and flame retardancy. In the complex operating environment of vehicles, whether facing high temperatures in the engine compartment, dust, mud and water splashes during driving, or even possible mechanical friction, reliable protection can be provided for internal cables, extending their service life.

In terms of interface design, precise matching of RP1226 and J1939 interfaces is required for different vehicle models. Taking the cable suitable for vehicles as an example, its interface pin layout has been carefully designed to accurately interface with vehicle equipment, ensuring compatibility and stability of signal transmission, without the need for additional switching devices or complex configurations, achieving fast and reliable connections. These characteristics make RP1226 to J1939 cable an efficient and durable connection choice in vehicle communication systems.
