Installation and Maintenance of J1939 9 Pin to Open End Cable

Installation and Maintenance of J1939 9 Pin to Open End  Cable

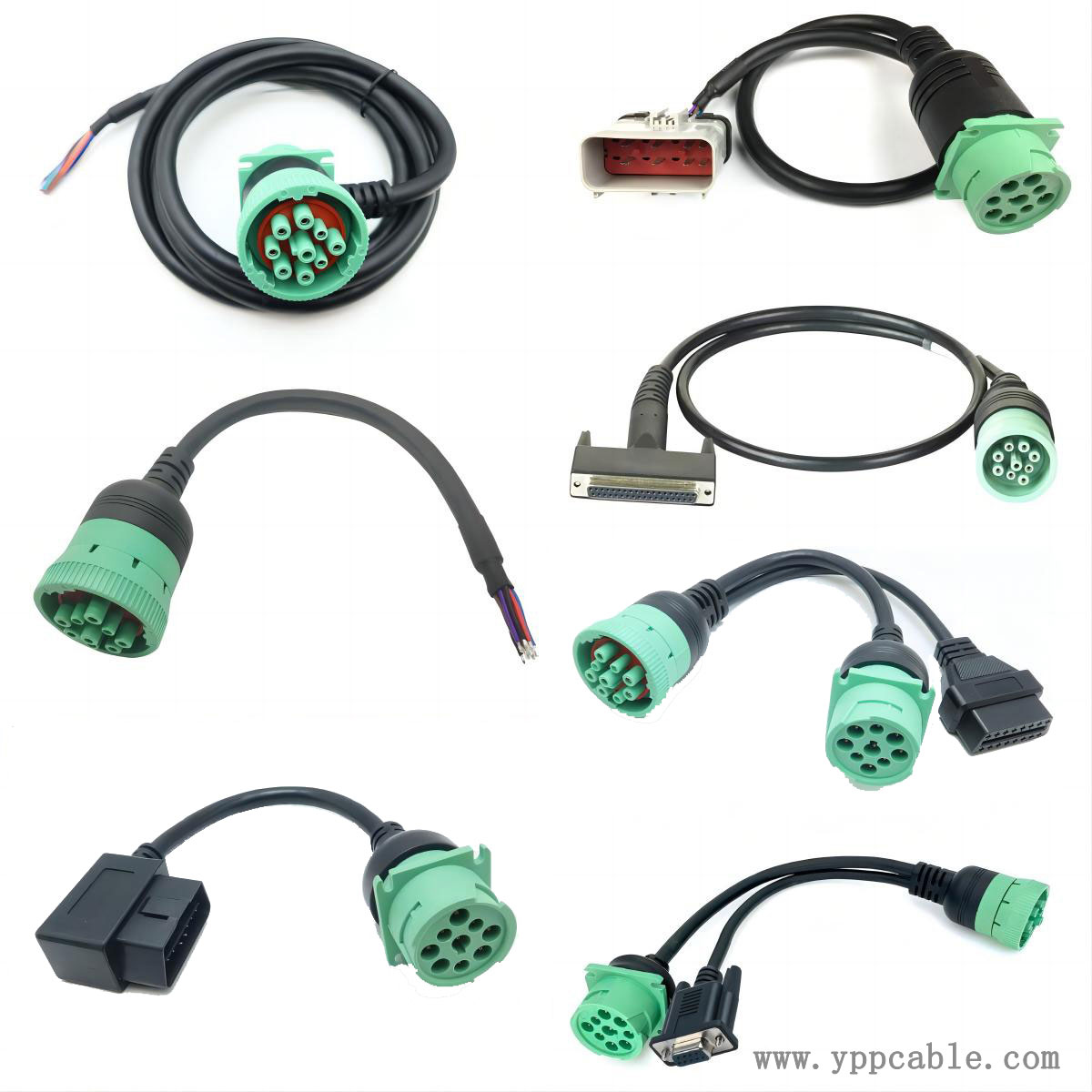

When installing the J1939 9 Pin to Open End  Cable, it is necessary to make a plan first. Carefully study the equipment layout and wiring path to ensure that the cable routing is reasonable, avoid crossing with other strong current lines, and reduce the risk of electromagnetic interference. For one end of the 9-pin connector, when inserting into the device interface, it is necessary to accurately align, gently insert and tighten the fixing nut to ensure a tight connection and prevent signal transmission interruption caused by looseness.

The installation of open end tail fibers is more critical. If customized devices need to be connected, the tail fiber should be properly terminated according to the device interface requirements. If welding is used, it is necessary to ensure that the welding points are firm and smooth, and avoid virtual welding; If using crimping tools, ensure that the crimping force is appropriate to make the connection reliable. After completing the termination, the connection needs to be insulated by tightly wrapping it with insulating tape to prevent short circuits.

Regular inspection of cable appearance is crucial in daily maintenance. Check if the connector is loose or deformed, and if there are any signs of damage or aging on the cable sheath. If gaps are found in the waterproof over mold connector, they should be sealed in a timely manner to prevent moisture from entering. For cables exposed to harsh environments, the inspection frequency should be increased.

The monitoring of signal transmission performance cannot be ignored. Professional testing equipment can be used to regularly detect indicators such as cable signal attenuation and bit error rate. Once a decrease in signal quality is detected, it is necessary to investigate the problem, which may be due to poor contact of the connector or internal damage of the cable. Timely repair or replacement should be carried out to ensure smooth communication between devices. By standardizing installation and scientific maintenance, the service life of JJ1939 9 Pin to Open End  Cables can be effectively extended, ensuring their stable operation.
