Adaptation scenarios of J1939 9-pin to open end cable in construction machinery

Adaptation scenarios of J1939 9-pin to open end cable in construction machinery

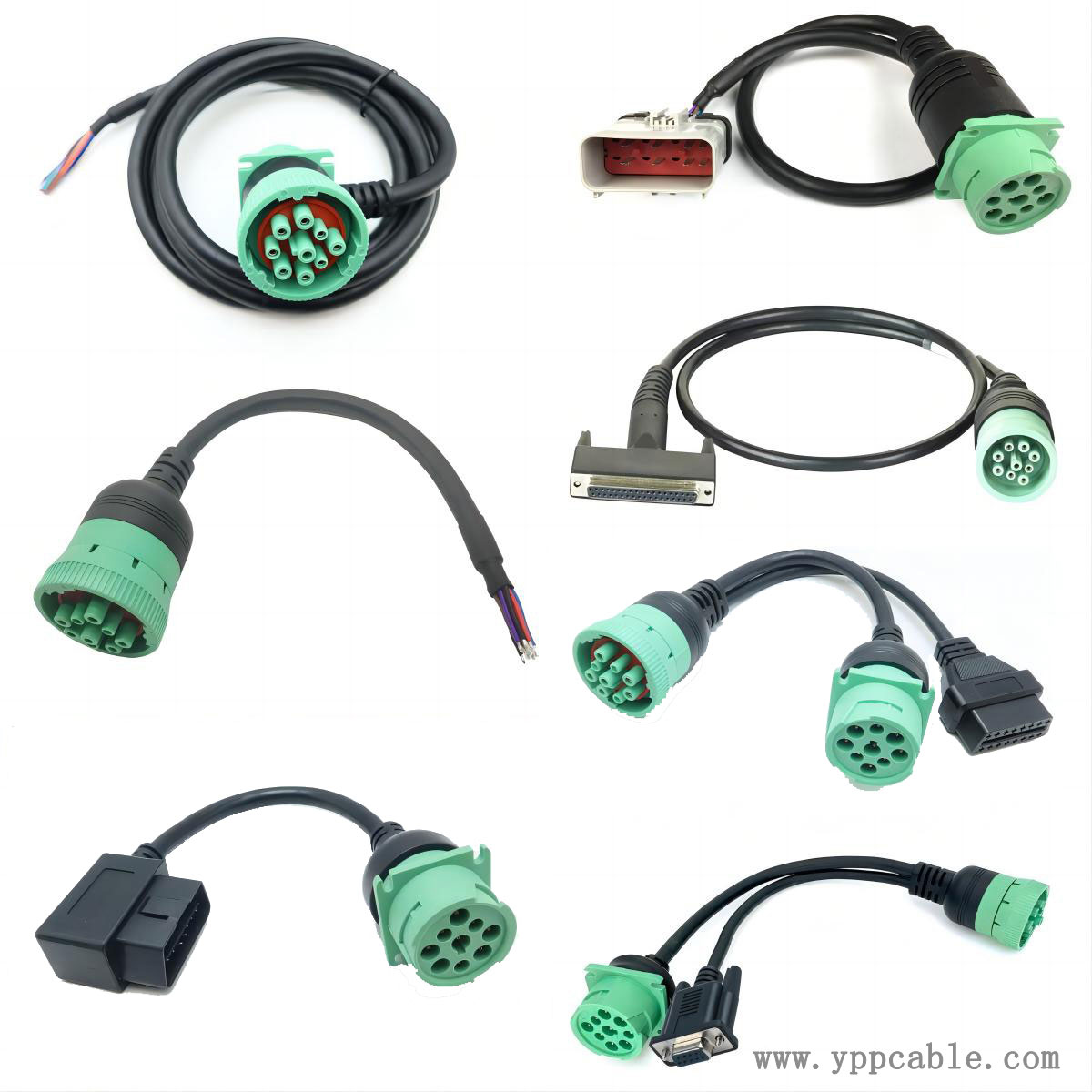

The working conditions of construction machinery (such as excavators, loaders, and rollers) are much more complex than commercial vehicles, and the reliability requirements for communication cables are higher. J1939 9-pin to open end cables have become the preferred choice for such equipment due to their strong adaptability.

In the control system of the excavator, this cable connects the engine ECU, hydraulic sensor, and cab controller to transmit real-time data such as engine speed and hydraulic pressure, ensuring accurate execution of operation instructions. Due to the frequent exposure of excavators to dust and mud environments, the IP67 protection level of cables can effectively isolate impurities and avoid short circuit faults.

In the intelligent compaction system of the road roller, cables need to be connected to vibration sensors and data acquisition terminals to transmit data such as compaction degree and driving speed. Its anti vibration performance can prevent poor contact of wires, ensure continuous data transmission, and help construction personnel accurately control compaction quality.

In addition, the open end design of the cable can adapt to interfaces of different brands of construction machinery, reducing the difficulty of replacing accessories during equipment maintenance and improving maintenance efficiency.
