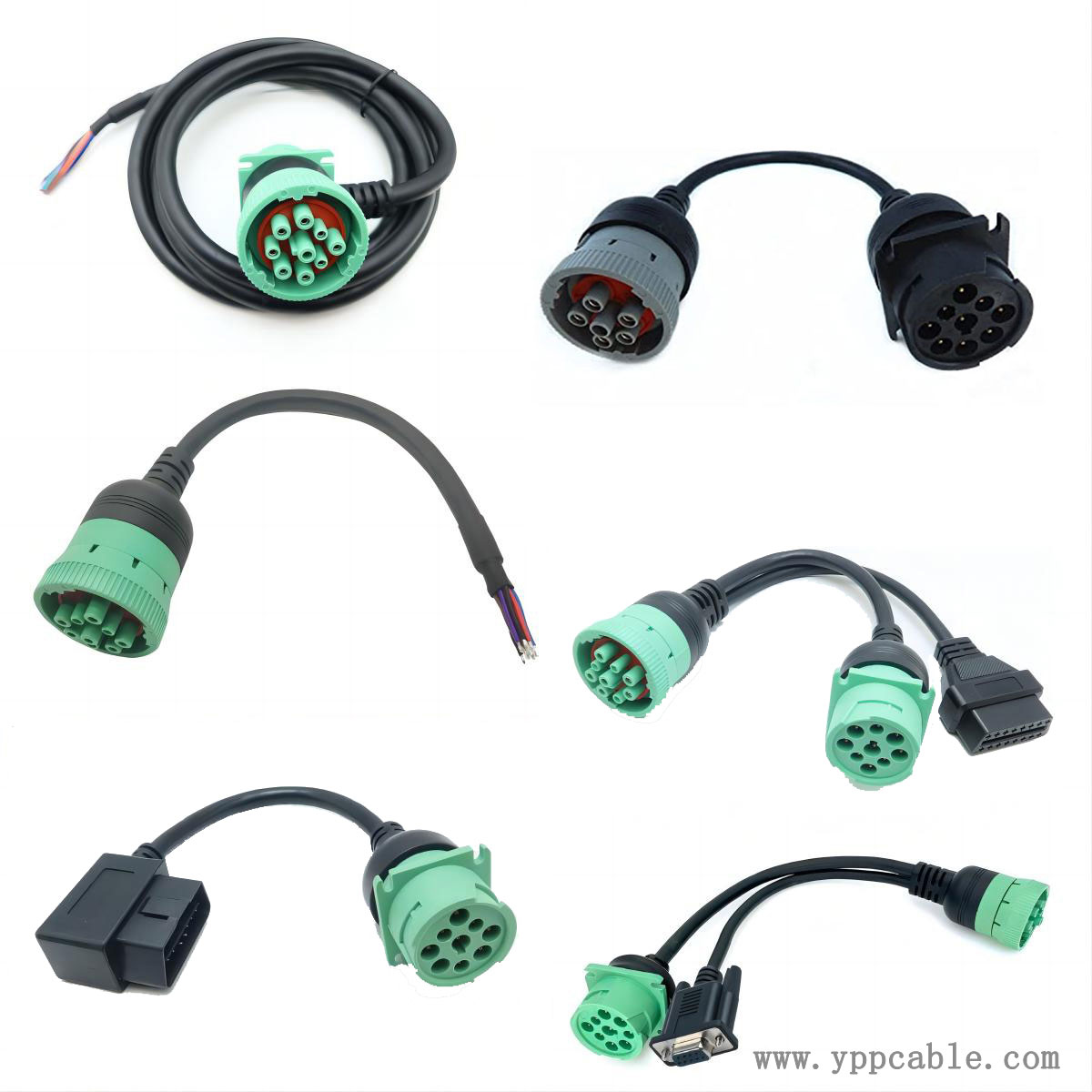

As the mainstream communication standard in the commercial vehicle field, J1939 protocol relies on shielded twisted pair cables in its physical layer to achieve reliable data transmission. The integrity of such cables directly affects the communication quality of key modules such as engine control and transmission systems, so a systematic detection process is the core link to ensure stable network operation.

Physical structural integrity testing

Cable testing needs to start with basic physical characteristics. Firstly, use a digital multimeter for continuity testing, with a focus on checking whether the twisted pair cables have broken wires or short circuits. Taking the communication failure of a heavy-duty truck gearbox control unit as an example, technicians found through segmented measurement that the CAN-H line was broken at the cab harness interface. After repair, communication was restored. Secondly, it is necessary to verify the matching of terminal resistors. A standard 120 Ω terminal resistor can effectively suppress signal reflection. If the resistance deviation exceeds the specified range during actual testing, it is necessary to check for resistance aging or poor contact issues.

Shielding layer effectiveness verification

The communication stability under electromagnetic interference environment highly depends on the performance of the shielding layer. During the inspection, it is necessary to confirm that the shielding layer and the 360 ° ring grounding of the metal frame are grounded to avoid the occurrence of "pig tail" grounding defects.

Dynamic Communication Quality Assessment

On the basis of static detection, dynamic monitoring needs to be carried out through professional diagnostic instruments. Focus on observing error frame rates. When there are more than 5 error frames per second, it indicates serious interference or physical layer failure

By constructing a three-level detection system of "physical detection shielding verification dynamic evaluation", cable hazards in J1939 networks can be systematically eliminated.
