What are the advantages of J1939 male to 2 female J1939 splitter Y cable?

What are the advantages of J1939 male to 2 female J1939 splitter Y cable?

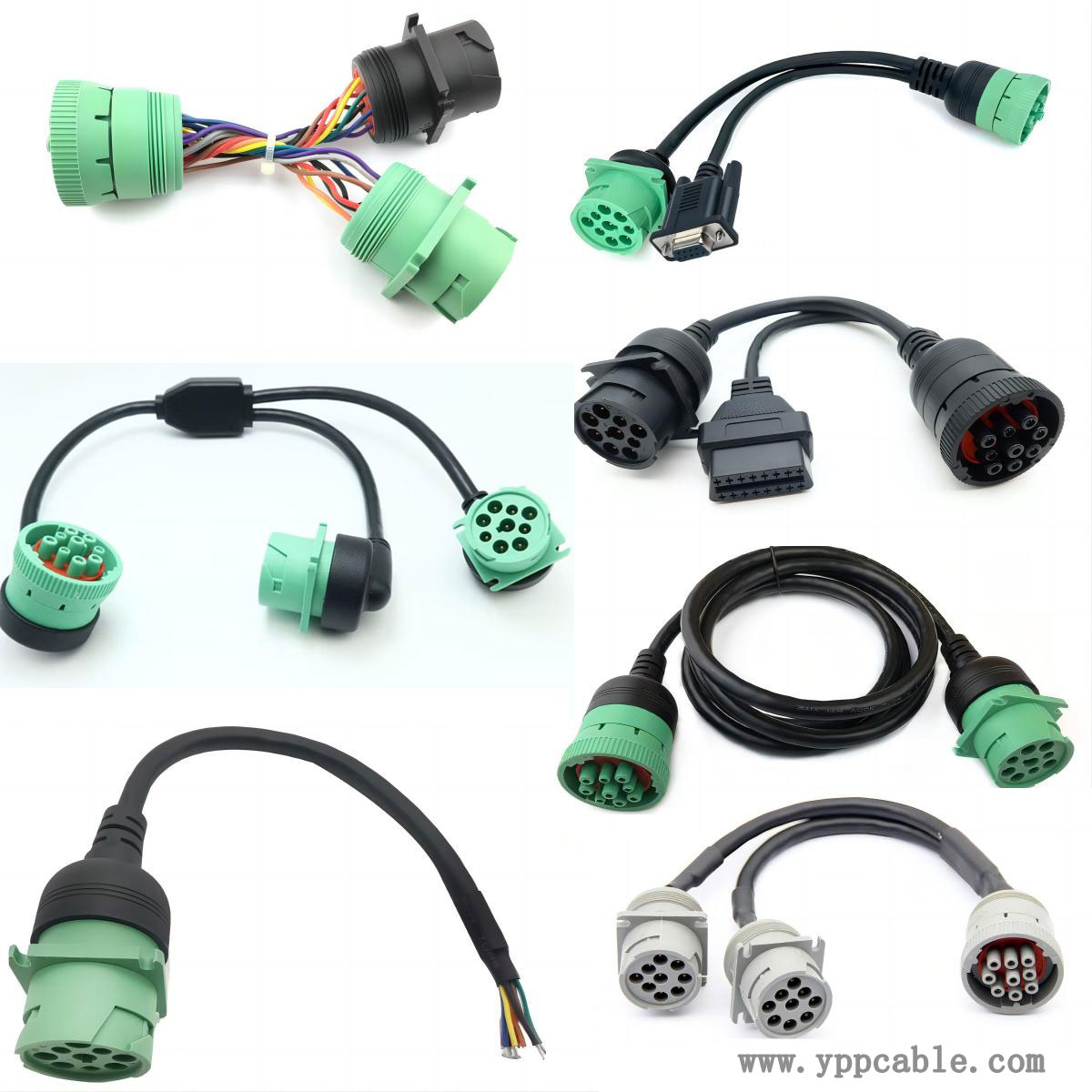

J1939 male to 2 female J1939 splitter Y cable has  significant advantages in the field of data communication for heavy vehicles, engineering machinery, and industrial equipment, mainly reflected in signal scalability, equipment compatibility, installation convenience, system reliability, and cost-effectiveness. The following is a specific analysis:

1. Signal scalability

Multi device connection: This cable allows one male connector to be connected to two female connectors simultaneously, enabling parallel transmission from a single signal source to multiple devices.

Flexible topology: Supports star or bus topology structures, facilitating the expansion of communication nodes in complex systems and reducing signal attenuation and interference.

2. Device compatibility

Standard protocol support: Fully compatible with SAE J1939 protocol, suitable for all devices that comply with this standard, such as engine control units (ECUs), transmission controllers, instrument panels, etc.

Physical interface adaptation: Using a 9-pin connector (commonly found in heavy-duty vehicles) to ensure physical compatibility with the original vehicle interface and avoid connection problems caused by interface mismatch.

3. Installation convenience

Plug and play: No complex configuration required, simply plug in and use, suitable for rapid deployment on site.

Space optimization: The Y-shaped design is compact and suitable for small spaces such as the cab or engine compartment, reducing wiring difficulties.

4. System reliability

Signal integrity: High quality shielding layer and impedance matching design ensure that the signal is not distorted during transmission, especially suitable for high-speed CAN bus.

Anti interference capability: effectively resists electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring the stability of data transmission.

5. Cost effectiveness

Reduce wiring costs: Connect multiple devices through a single cable, reducing the number of cables and installation time.

Simplified maintenance: During troubleshooting, the problem equipment can be quickly located to avoid the entire system shutting down due to a single point of failure.

6. Application scenario extension

Diagnosis and Debugging: Suitable for vehicle diagnosis, ECU flashing, and other scenarios, supporting simultaneous operation by multiple engineers.

Data collection: In fleet management, both data recorders and remote monitoring devices can be connected simultaneously to achieve real-time data collection and analysis.

Redundant design: It can serve as a backup communication path in critical systems to enhance the system's fault tolerance.
