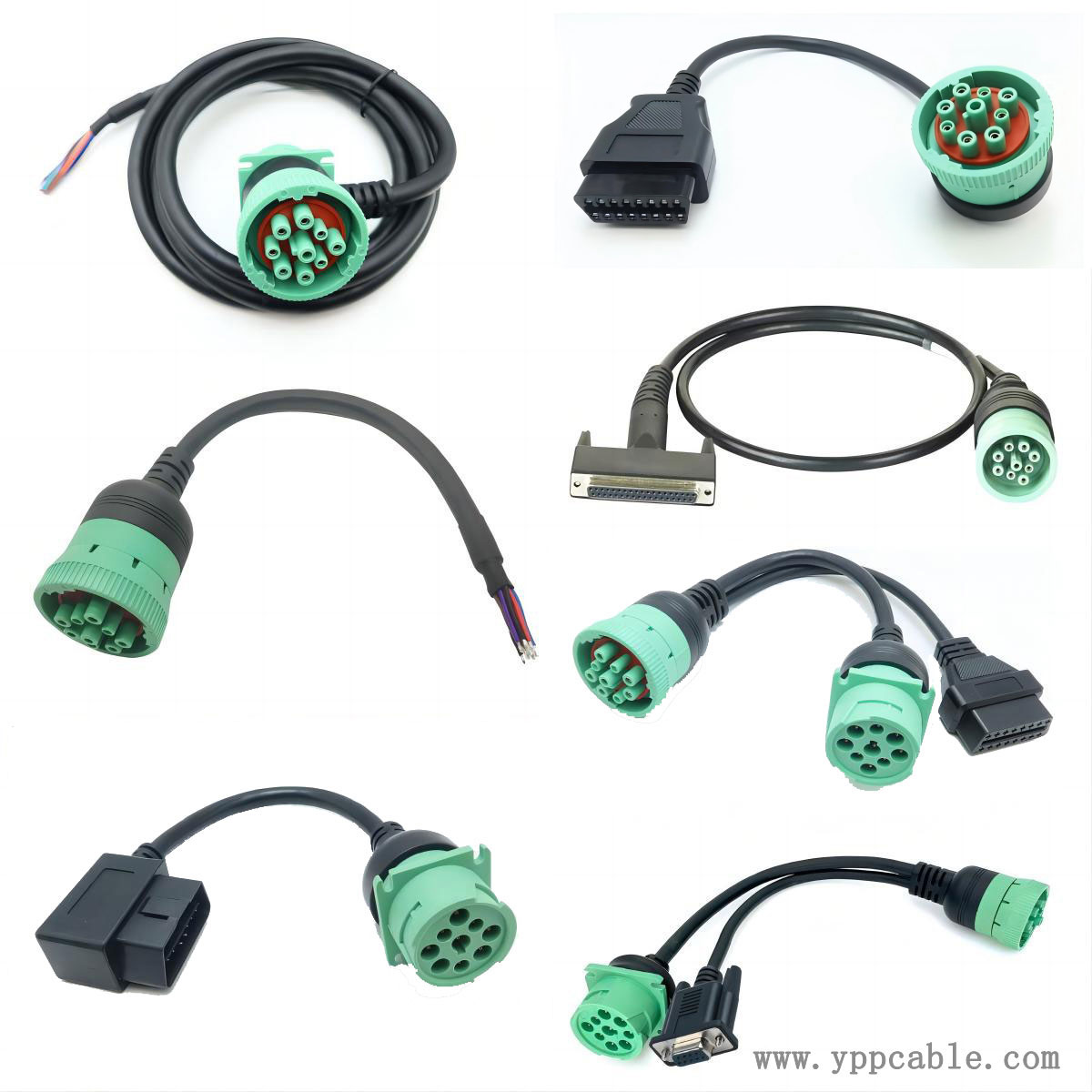

J1939 9-pin to right angle OBD2 16 pin cable is a communication interface conversion tool designed specifically for heavy-duty vehicles such as trucks, buses, construction machinery, etc. Its core function is to convert the vehicle's original J1939 9-pin interface to a standard OBD2 16 pin interface, while optimizing installation space through right angle design. The following is an analysis of its specific application scenarios and technical value:

Core application scenarios

Remote monitoring and fleet management of trucks/buses

GPS tracking and data collection: By converting cables, heavy vehicles with J1939 protocol can be connected to GPS tracking devices with OBD2 interface to collect real-time data such as vehicle location, mileage, fuel consumption, etc., supporting fleet scheduling optimization.

Fault diagnosis and warning: After connecting the OBD2 diagnostic instrument, it can read the fault codes of key components such as the engine and transmission under the J1939 protocol, early warning potential problems and reducing downtime.

Data integration of construction machinery and special vehicles

Multi device compatibility: In construction machinery such as excavators and loaders, the original vehicle may only be equipped with J1939 interface, while third-party devices (such as fuel consumption meters and hydraulic sensors) need to be connected through OBD2 interface. Converting cables can achieve protocol interoperability and avoid modifying the original vehicle circuit.

Data standardization: The J1939 protocol defines parameter group numbers (PGNs) and suspicious parameter numbers. By converting cables, specialized parameters such as hydraulic oil temperature and pump pressure can be converted to OBD2 standard format for centralized management.

Vehicle modification and customized development

OBD2 ecosystem extension: Developers can connect J1939 vehicles to OBD2 development tools through this cable, and quickly develop customized applications using the existing software ecosystem without the need to adapt J1939 protocol from scratch.

Advantages of right angle design: In compact areas such as engine compartments, right angle cables can reduce the bending radius of wires, avoid interference with engine pipelines, and improve installation reliability.
