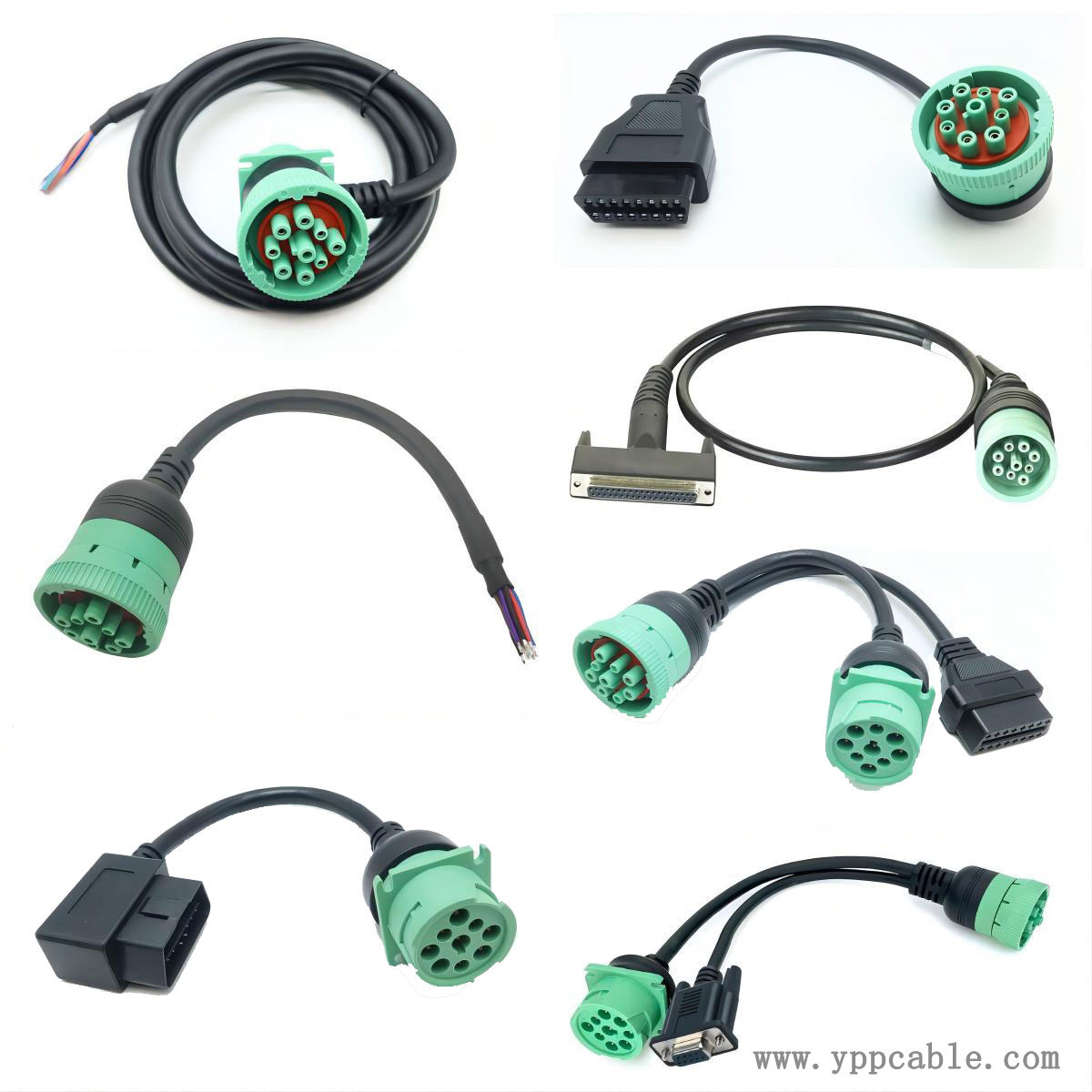

Right angle OBD2 to J1939 cable application: communication bridge between heavy-duty vehicles and commercial vehicles

Application of Right Angle OBD2 to J1939 Cable: Communication Bridge between Heavy duty Vehicles and Commercial Vehicles

Protocol differences between OBD2 and J1939

OBD2 (On Board Diagnostics II) is a mandatory standard for passenger car emission diagnosis, which uses CAN bus to transmit data, but the protocol focuses on fault codes and basic parameters (such as vehicle speed and RPM).

J1939 is a specialized protocol for heavy-duty vehicles such as trucks, buses, and construction machinery. Based on the CAN 2.0B extended frame, it defines complete parameter group numbers (PGN) and suspicious parameter numbers (SPN), and supports standardized transmission of complex data such as engine torque, oil temperature, and DPF status.

The physical advantages of right angle cables

Space adaptability: The right angle design can closely adhere to the vehicle's OBD2 port (usually located under the steering wheel or behind the dashboard), reducing the bending radius of wires and avoiding loose connections or signal interference caused by narrow space.

Durability: Heavy vehicles experience frequent vibrations, and the right angle joints are reinforced with designs such as metal casings and high-strength plastics to enhance their impact resistance and extend their service life.

Typical application scenarios

Fleet management: By connecting cables, J1939 data (such as fuel consumption, mileage, fault codes) is transmitted to OBD2 diagnostic instruments or onboard terminals to achieve real-time monitoring and scheduling optimization.

Maintenance diagnosis: Maintenance personnel use OBD2 scanning tools that support J1939 to quickly read detailed parameters of core components such as the engine and transmission, reducing troubleshooting time.

Modification and Upgrade: In electric trucks or hybrid vehicles, adapter cables help ensure compatibility between new and old system data, such as converting J1939 signals from traditional diesel engines into OBD2 format for ECU processing.
