Advantages of J1939 splitter Y cable

Advantages of J1939 splitter Y cable

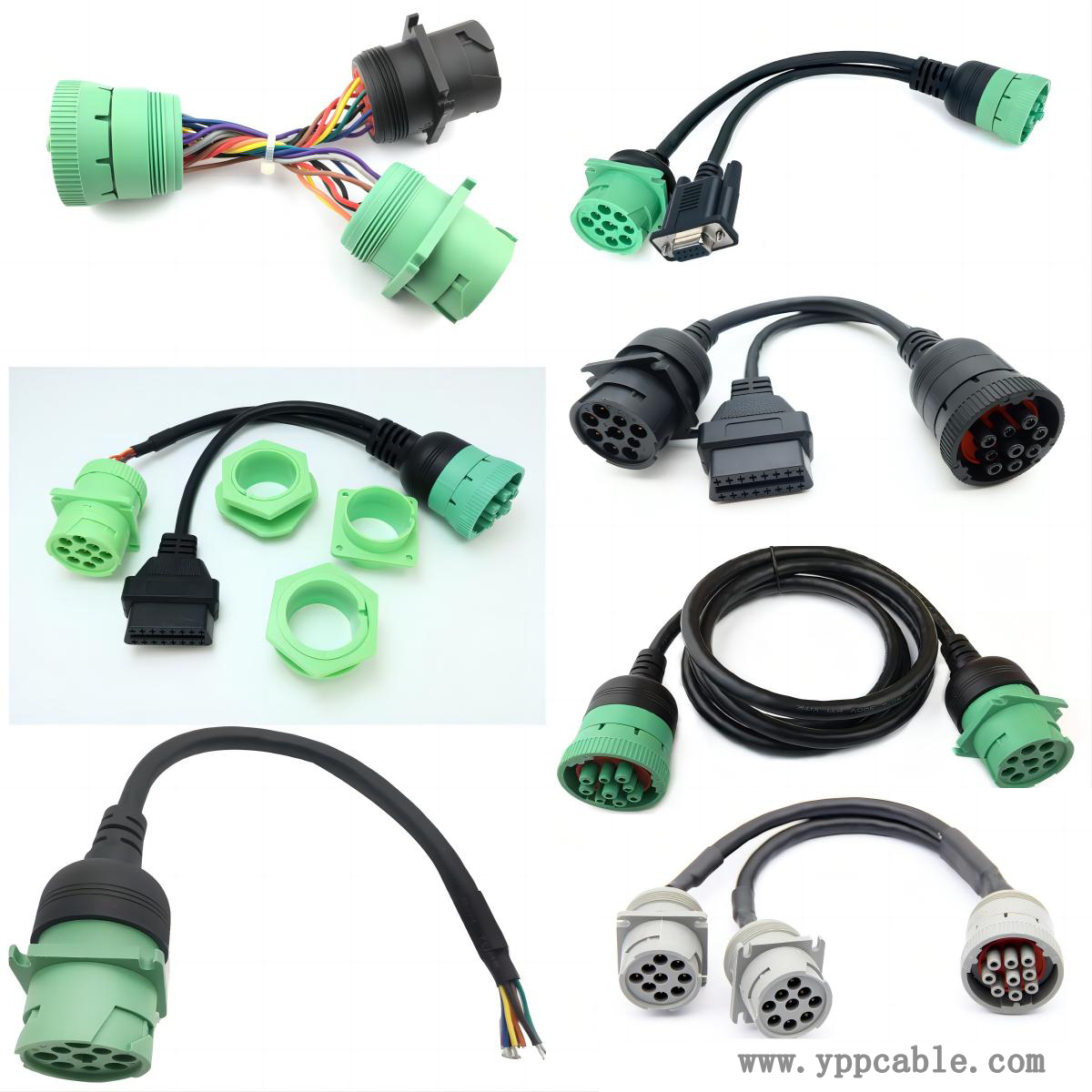

The J1939 splitter Y cable, as a specialized component in the field of heavy-duty vehicle communication, has five core advantages: compatibility optimization, signal stability enhancement, installation efficiency improvement, application scenario expansion, and protocol support improvement. The specific analysis is as follows:

1. Compatibility optimization: Suitable for multiple types of vehicles and devices

Physical layer compatibility: The J1939 splitter Y cable strictly follows the standard and adopts shielded twisted pair design to ensure seamless connection with OBD2 interfaces and J1939 standard equipment of heavy-duty vehicles such as trucks, buses, and construction machinery.

Protocol layer compatibility: Based on the CAN 2.0B specification, it supports extended identifiers and fully matches the message structure defined by the J1939 protocol (such as parameter group number PGN, suspicious parameter number SPN) to avoid data transmission errors.

2. Enhanced signal stability: anti-interference and long-distance transmission

Shielding design: The cable adopts braided and shielding layers to effectively suppress electromagnetic interference (EMI) and ensure the integrity of signal transmission in complex electromagnetic environments (such as engine compartments).

3. Installation efficiency improvement: Simplify wiring and maintenance

Y-shaped branching structure: Two independent lines are branched out through a single interface, reducing the wiring complexity between the onboard diagnostic system and multiple devices.

Plug and play design: The plug meets standards and RoHS requirements, supports hot plugging, and does not require additional configuration or software debugging, significantly reducing device installation and debugging time.

4. Application scenario extension: supports multi device collaborative work

Diagnosis and Monitoring: In vehicle fault diagnosis, the Y cable can simultaneously connect the diagnostic instrument and remote monitoring platform, achieving synchronous local maintenance and cloud data analysis.

Data collection and recording: Supports connecting multiple data collection devices (such as temperature sensors and pressure sensors) to achieve synchronized recording of multiple parameters, providing data support for vehicle performance optimization.

5. Complete protocol support: covering standards and extended functions

Dynamic Address Allocation: Supports the dynamic address allocation mechanism defined by the J1939 protocol, allowing new access devices (such as temporary diagnostic tools) to automatically obtain available addresses, avoiding address conflicts and improving network flexibility.

Fault diagnosis and network management: By standardizing the data link layer, it supports message priority control, flow control, and error detection, ensuring that critical data (such as engine fault codes) are transmitted first and improving system reliability.
