Daily protection precautions for OBD2 to J1939 cable

Daily protection precautions for OBD2 to J1939 cable

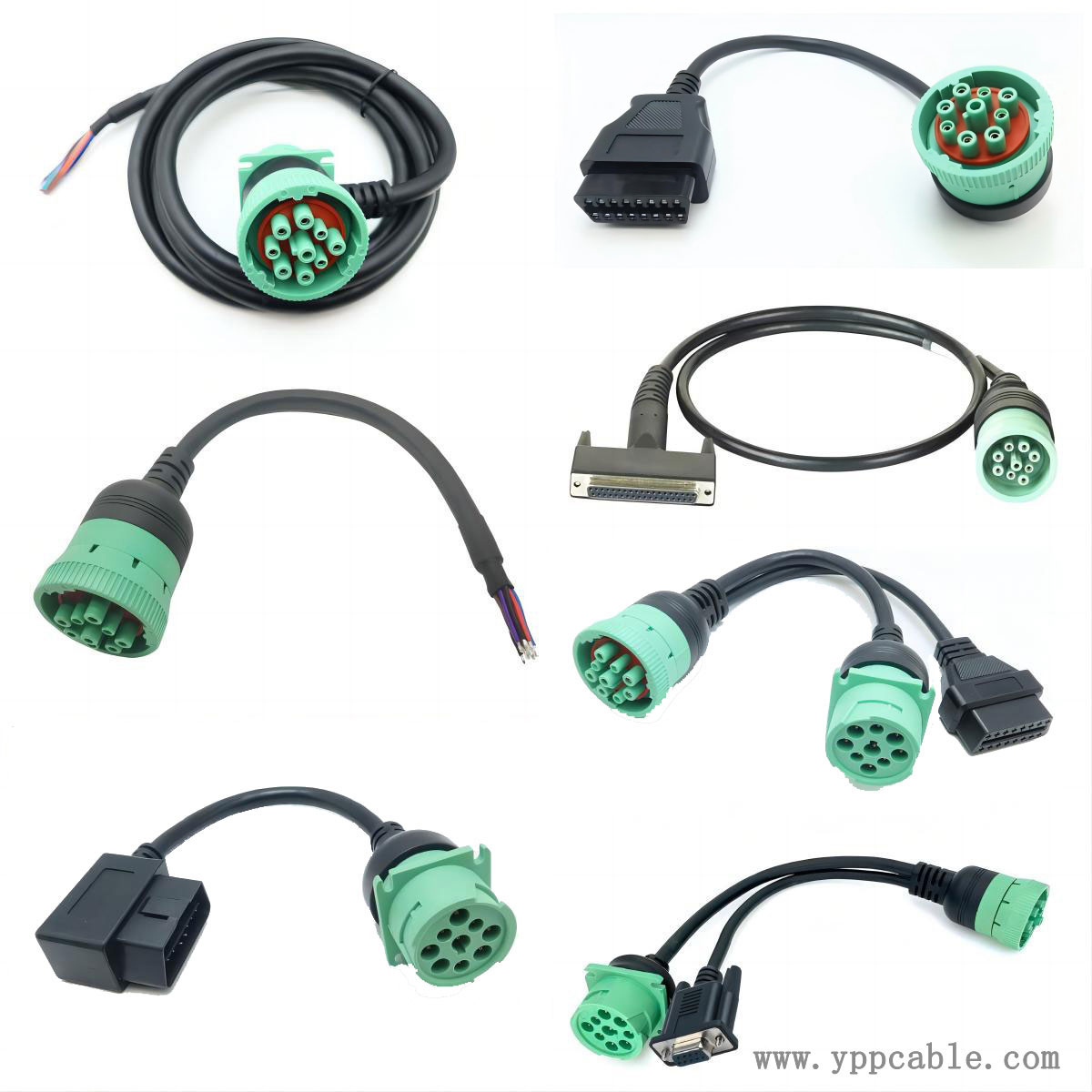

The OBD2 to J1939 cable serves as a bridge between the vehicle's OBD2 interface and J1939 protocol equipment, playing an important role in fields such as vehicle diagnosis and data monitoring. To ensure its stability and extend its service life, daily protection should focus on the following aspects:

1、 Physical protection

Avoid mechanical damage:

During use, cables should avoid excessive bending, stretching, or twisting to prevent internal wire breakage or poor contact.

When the vehicle is in motion or the equipment is moving, it should be ensured that the cables are not compressed or collided. Fixed devices such as cable trays and clamps can be considered to protect the cables.

Waterproof and moisture-proof:

Although the OBD2 and J1939 interfaces themselves may have some waterproof performance, special attention should still be paid to waterproofing at cable connections.

When used in humid environments or rainy days, ensure that the cable connections are dry to prevent moisture from seeping in and causing short circuits or corrosion.

Dust and dirt prevention:

Regularly clean the dust and dirt on the surface of the cable, keeping it clean to reduce poor contact or heat dissipation problems caused by dirt accumulation.

2、 Electrical protection

Avoid overload:

Ensure that the current and voltage carried by the cable are within their rated range, and avoid overloading that may cause the cable to overheat, age, or even damage.

Anti static:

In a dry environment, static electricity may cause damage to cables and interfaces. Therefore, when connecting or disconnecting cables, anti-static measures should be taken, such as using anti-static wristbands.

Regular inspection:

Regularly inspect the insulation and conductivity of cables to ensure they are in good condition. If any damage, aging, or poor contact is found in the cable, it should be replaced in a timely manner.

3、 Usage and Storage

Correct use:

When connecting or disconnecting cables, the correct sequence of operations should be followed to avoid rough handling that may cause damage to the interface or cable.

Ensure that the connection between the cable and the interface is firm and reliable, avoiding poor contact or data transmission errors caused by looseness.

Reasonable storage:

When the cable is not in use, it should be stored in a dry, ventilated, and non corrosive gas environment.

Avoid placing cables with sharp objects or heavy objects to prevent them from being scratched or crushed.
